IS200TRPGH1B

About the IS200TRPGH1B

The IS200TRPGH1B is a device which is a part of the Mark VI series by General Electric or GE. The Mark VI is one of the series in the Mark lineup by GE.

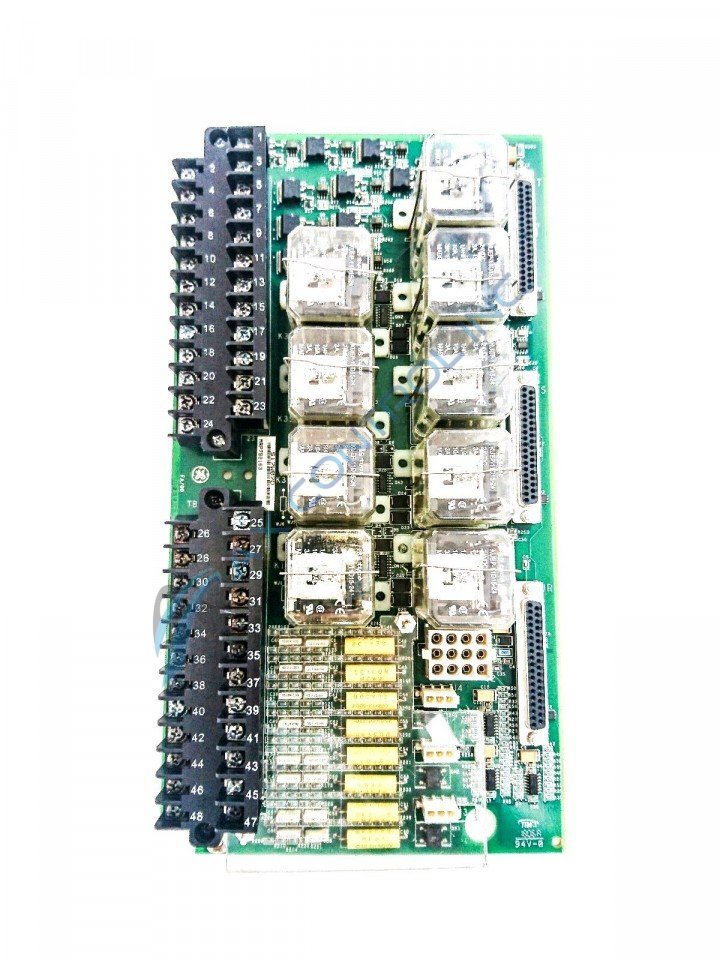

The IS200TRPGH1B is a PCB or printed circuit board with a variety of different components. Two (2) large black terminal blocks are featured on the left side of the IS200TRPGH1B. Both of these terminal blocks contain twenty-four (24) silver metal terminals which are numbered from one (1) through twenty-four (24) and twenty-five (25) through forty-eight (48). A variety of capacitors are located on the bottom half of the IS200TRPGH1B. A vertical line of eight (8) solid yellow capacitors is arranged at the bottom of the IS200TRPGH1B in the center of the board. To the left of these yellow capacitors, there are two (2) vertical rows of small white capacitors. These rows are situated parallel to each other. They contain a total of sixteen (16) capacitors. On the right side of the bottom of the IS200TRPGH1B, there is a white block of connector ports. Twelve (12) small ports are contained within this block. Three (3) more of these white connectors which each have three (3) ports are aligned vertically below this. Three (3) connector ports may be found on the right border of the IS200TRPGH1B. These connector ports have been arranged in a vertical line. Every connector port contains thirty-seven (37) “female” ports. The IS200TRPGH1B features a number of small-sized integrated circuits. The integrated circuits are attached to the IS200TRPGH1B in various places.
