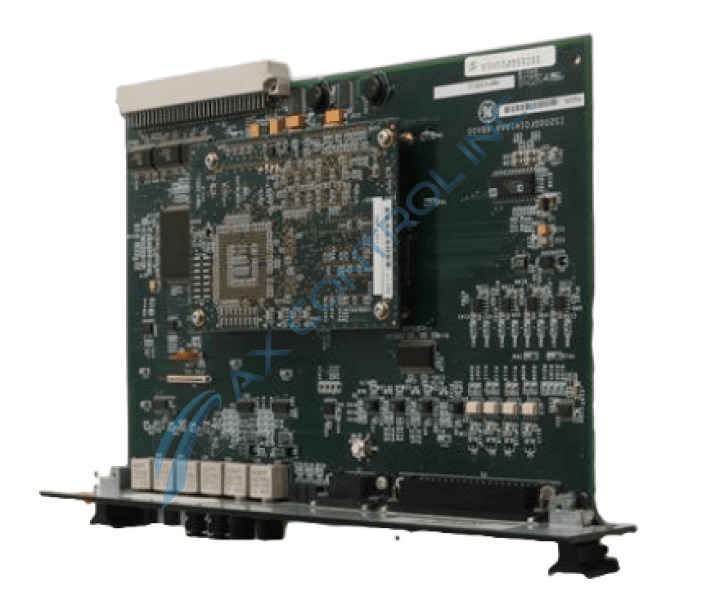

About the IS200TRPGH2B
The IS200TRPGH2B is a Gas Turbine Primary Trip terminal board designed by GE to be part of the Mark VI system. The Mark VI is an industrial gas/steam turbine management system featuring dynamic data recorders, trip history logs, and CIMPLICITY graphics display files (available through the system’s HMI/operator interface.) This IS200TRPGH2B Primary Trip Terminal Board printed circuit board product offering's greater Mark VI Turbine Control System Series, presented here through its full extended GE product series title, exists with a specific set of possible functional applications specifically in the control and management systems of popular, GE-compatible gas, steam and wind turbine automated drive assemblies. This is quite the significant functional improvement upon the previous industry-standard Mark V Turbine Control System Series of just about the same full extended series title as the Mark VI Series was specifically developed to add the alternative energy-based wind turbine functional application onto the gas and steam turbine applications made possible with the previously-developed Mark V Series.
Hardware Tips and Specifications
The IS200TRPGH2B is a Simplex version of the TRPG board, which is one of several versions/types available of the TRPG. Output contact power is 125 V dc, 1 A or 24 V dc, 3 A. Normal power use for the board is at 28V. It works with the TREG board to form the emergency and primary sides of the interface to the ETDs. This board also allows for inputs from eight Geiger-Mueller flame detectors when used in gas turbine applications. The IS200TRPGH2B has two terminal blocks with 24 screw connections per terminal block. The terminal blocks are connected to the board using two screws for mounting. A shield bar is connected to the board next to the terminal blocks. The opposite edge has a single 37-pin (female) cable connector (JR1.) The board also has several plug connectors (J1 through J5) that vary from three-position plugs to twelve-position plugs. This IS200TRPGH2B Primary Trip Terminal Board product is actually not considered to be the originally-developed printed circuit board or PCB of its originally-intended Mark VI Turbine Control System Series functional product role. That would have to be the IS200TRPGH2 Parent Primary Trip Terminal Board notably not making use of this IS200TRPGH2B Primary Trip Terminal Board device's sole B-rated functional product revision.
The center of the IS200TRPGH2B is populated by three relays, although there is space on the board for others. Each of these relays interfaces with a trip solenoid. The board is populated by polyester vinyl capacitors and capacitors of other materials, resistors, transistors, and several diode bridge rectifiers. One side of the board is fitted with standoffs that connect to a clear shield that is placed over a number of components. This IS200TRPGH2B Primary Trip Terminal Board device's greater Mark VI Turbine Control System Series, as it is known at lenght, is actually really not well-contextualized online within any great amount of originally-developed instructional manual materials. With this being the case, this IS200TRPGH2B Primary Trip Terminal Board product offering's IS200TRPGH2B Primary Trip Terminal Board functional product number itself can be rolled out as a sufficient supplementary source of IS200TRPGH2B Primary Trip Terminal Board device hardware component and component specification information, as it codes for a number of important IS200TRPGH2B Primary Trip Terminal Board device qualities through its series of consecutive functional naming components. For instance, this IS200TRPGH2B Primary Trip Terminal Board PCB's IS200TRPGH2B Primary Trip Terminal Board functional product number begins with an inclusion of the standard dual-functional IS200 series tag indicating this IS200TRPGH2B Primary Trip Terminal Board product's normal Mark VI Series assembly as well as its domestic original GE manufacture location. Some of the other IS200TRPGH2B Primary Trip Terminal Board hardware qualities revealed this way include its:
- TRPG functional product acronym
- Group 2 Mark VI Series grouping
- Conformal PCB coating style
- B-rated revision
