About the IS200TRTDH1CBB
The IS200TRTDH1CBB is a PCB component made by GE for the Mark VI system. The Mark VI, which is one of several systems released under the Speedtronic line, is designed for the management of gas and steam turbines. The Mark VI Turbine Control System Series that this IS200TRTDH1CBB Resistance Temperature Detector Board device belongs to, called by its government name here, exists with a specific series of possible functional product applications in the management and control systems of General Electric-compatible gas, steam, and wind turbine automated drive assemblies. This has to be classified as quite the significant functional upgrade upon the previous industry-standard Mark V Turbine Control System Series of almost the exact same full extended series title, as the Mark V Series did not yet feature the alternative energy-based wind turbine possible functional product application seen with the later rollout of the Mark VI here.
Hardware Tips and Specifications

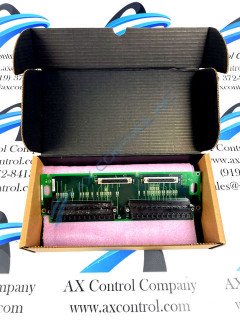

The IS200TRTDH1CBB is an RTD Input terminal card that accepts sixteen three-wire RTD inputs. All inputs to this board are designed with noise suppression in order to protect against surge and high-frequency noise. This PCB communicates with an I/O processor, which converts inputs to digital temperature values and then sends these to the controller. The IS200TRTDH1CBB is a simplex board. It connects to a single VRTD board using two cables that connect to two (female) DC-37 connectors located on the IS200TRTDH1CBB board. These connectors are labeled JA1 and JB1. The board has two 24-screw connection terminal blocks (TB1 and TB2) that can be disconnected from the board to allow for maintenance when needed. It has two oval cutouts for screw mounts and also has a shield bar connected to the left long side of the board. The IS200TRTDH1CBB supplies a non-continuous 10 mA dc excitation current to each RTD. These RTDs connect to the turbine control cabinet using a two-way cable with a resistance of 15 Ω and can be located up to 300 meters (984 feet) away. The RTDs can be either ungrounded or grounded. This IS200TRTDH1CBB Resistance Temperature Detector Board device, while definable through that official functional description, is by no means considered the original product of this GE-intended functionality. That product would be the IS200TRTDH1C or IS200TRTDH1 Temperature Detector Board Resistance Temperature Detector Board notably not making use of this IS200TRTDH1CBB Resistance Temperature Detector Board product's extended revision table.
The IS200TRTDH1CBB has no customizable hardware settings or jumpers but does include various diagnostic checks, including hardware limit checking and software limit checking. More information may be found by accessing GE publications like manuals and user guides. All of the IS200TRTDH1CBB Resistance Temperature Detector Board-specific information stored above on this IS200TRTDH1CBB Resistance Temperature Detector Board personalized product page has thus far been telling only of a technician-led visual inspection of the TRTD product itself; necessary given a low availability of online Mark VI Series instructional manual materials. With this being the case, the IS200TRTDH1CBB Resistance Temperature Detector Board functional product number itself can additionally be introduced as a fine source of IS200TRTDH1CBB Resistance Temperature Detector Board hardware component and component specification information, as it codes for a set of relevant IS200TRTDH1CBB Resistance Temperature Detector Board details through a series of consecutively-arranged naming elements. For starters, the IS200TRTDH1CBB Resistance Temperature Detector Board product number begins with the dual-functional IS200 series tag dictating this IS200TRTDH1CBB Resistance Temperature Detector Board PCB's normal Mark VI Series assembly as well as its U.S. original GE manufacture. Some of the other IS200TRTDH1CBB Resistance Temperature Detector Board qualities revealed like this include its:
- TRTD functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series product grouping
- Full three-fold revision table
