About the IS200TRTDH1CCC
Greater Product Series Information
The IS200TRTDH1CCC is a printed circuit board created by GE for the Mark VI Turbine Control System Series, as it is known at length. The Mark VI is a Speedtronic steam/gas turbine management system with a PC-based operator interface and software designed to work specifically with the MKVI hardware. The Mark VI Series that this IS200TRTDH1CCC product belongs to is:
- somewhat of an attractive prospect on its greater automated industrial marketplace
- it is one of General Electric's final-produced product series to make use of the patented Speedtronic control system technology first observed with the rollout of the initial Mark I Series in the mid to later 1960
- a massive upgrade upon the Mark Series iterations of the same name that came before
- this IS200TRTDH1CCC device's Mark VI Series's specific intended applications have been expanded to include alternative energy-based wind turbine control and management systems.
Hardware Tips and Specifications

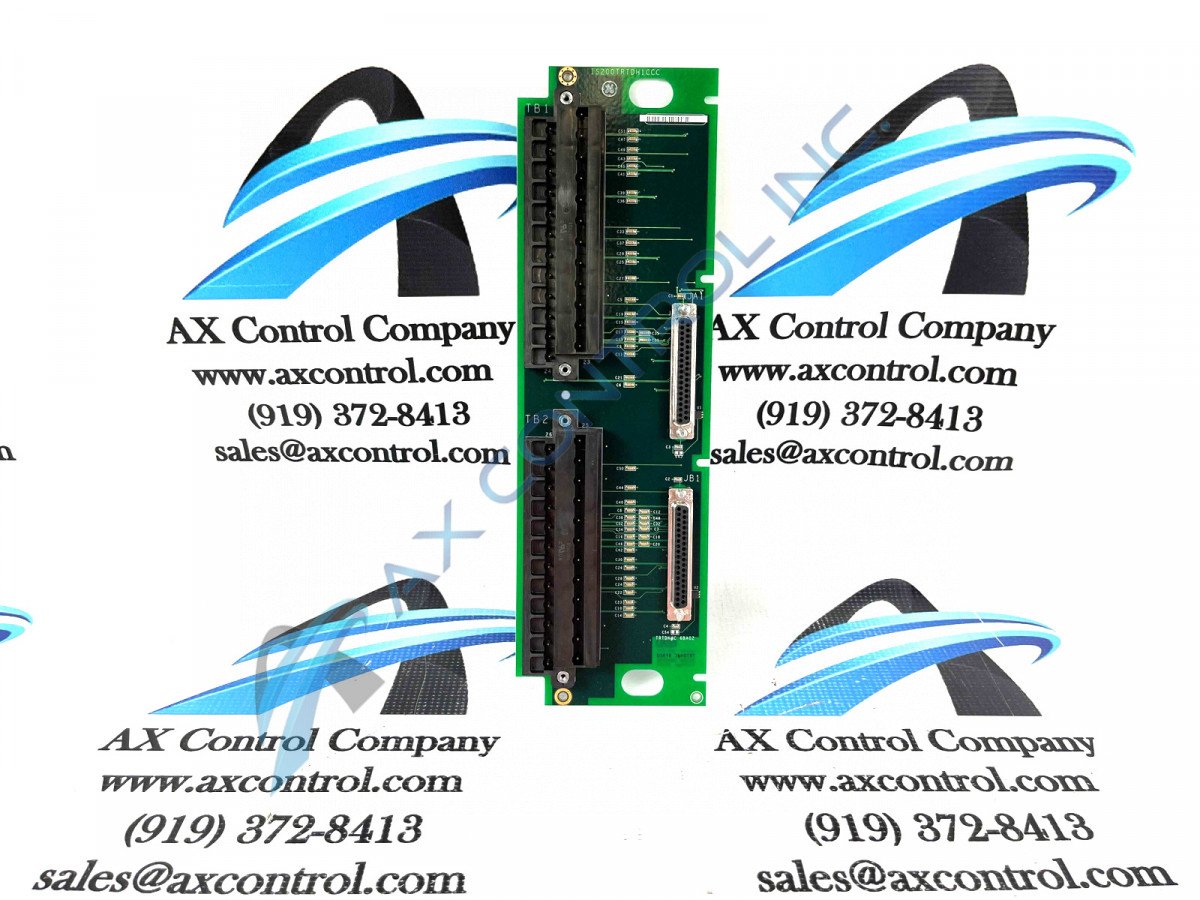

The IS200TRTDH1CCC is an RTD Input terminal board. This board has:
- two removable terminal blocks with 24 screw connections per block
- These components disconnect from the board for maintenance
- RTD input connects to terminal blocks using three wires
- sixteen RTD inputs
- three female 37-pin cable connectors located on the opposite side of the PCB; these are labeled JA1 and JB1
- Cables connect the TRTD board to the VRTD processor
- inputs have noise suppression to protect against high-frequency noise and power surge
- all RTD signals on the IS200TRTDH1CCC have high-frequency decoupling to ground at the signal entry
- ​​​​​​​The loss of a cable or an I/O processor will not cause the loss of any RTD signals in the control database, due to multiplexing within the I/O processors.
​​​​​​​This IS200TRTDH1CCC printed circuit board product offering is not actually the originally-produced device of its specific Mark VI Series intended functional role; that would be the IS200TRTDH1 parent RTD Input Terminal Board notably not possessing this IS200TRTDH1CCC device's three-fold revision history. The IS200TRTDH1CCC has eight channels per terminal board. Its span is 0.3532 to 4.054 V. Maximum lead resistance is 15 Ω maximum two-way cable resistance. The board can use RTDs made of platinum (10, 100, and 200 Ω,) copper (10 Ω,) and nickel (120 Ω.). AX Control stores and ships the IS200TRTDH1CCC as a static-sensitive board. This includes the use of an anti-static wrap. Your representative will help you choose the best shipping option for your needs from our many options.
IS200TRTDH1CCC Functional Product Number Breakdown
This IS200TRTDH1CCC printed circuit board product offering's greater Mark VI Turbine Control System Series, as mentioned above, is not surrounded by any great wealth of originally-printed instructional manual materials online, given the fact that it is a legacy General Electric product series. With this being true, alternative sources of IS200TRTDH1CCC Board hardware information such as the IS200TRTDH1CCC functional product number can be utilized for the research purposes of this IS200TRTDH1CCC personalized product page here. The IS200TRTDH1CCC functional product number indirectly delegates a number of relevant IS200TRTDH1CCC Board details through a characteristic series of functional naming components. For starters, the IS200TRTDH1CCC functional product number begins with the dual-functional IS200 series tag describing this IS200TRTDH1CCC device's normal Mark VI Series assembly on top of its domestic location of original GE manufacture. Some of the other relevant hardware specifications revealed in this manner include the IS200TRTDH1CCC PCB's:
- TRTD functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series product grouping
- Three-fold revision history
