About the IS200TRTDH1DCB
The IS200TRTDH1DCB is a printed circuit board manufactured by General Electric for use within the company’s Mark VI system. This was one of the final Speedtronic systems offered by General Electric for the control of heavy-duty gas and steam industrial turbine systems.The MKVI has a graphical interface made by General Electric called CIMPLICITY. This is used through the operator interface and allows direct control of the MKVI through graphical screens. The Mark VI has software for input and output configuration and monitoring. It also offers signal management and signal trending through the Control system Toolbox. This IS200TRTDH1DCB printed circuit board product offering's greater Mark VI Turbine Control System Series is generally very much held in high esteem due to its unique status as one of the very last-developed GE Mark product series iterations to feature the patented Speedtronic control system technology in an array of product options.
Hardware Tips and Specifications

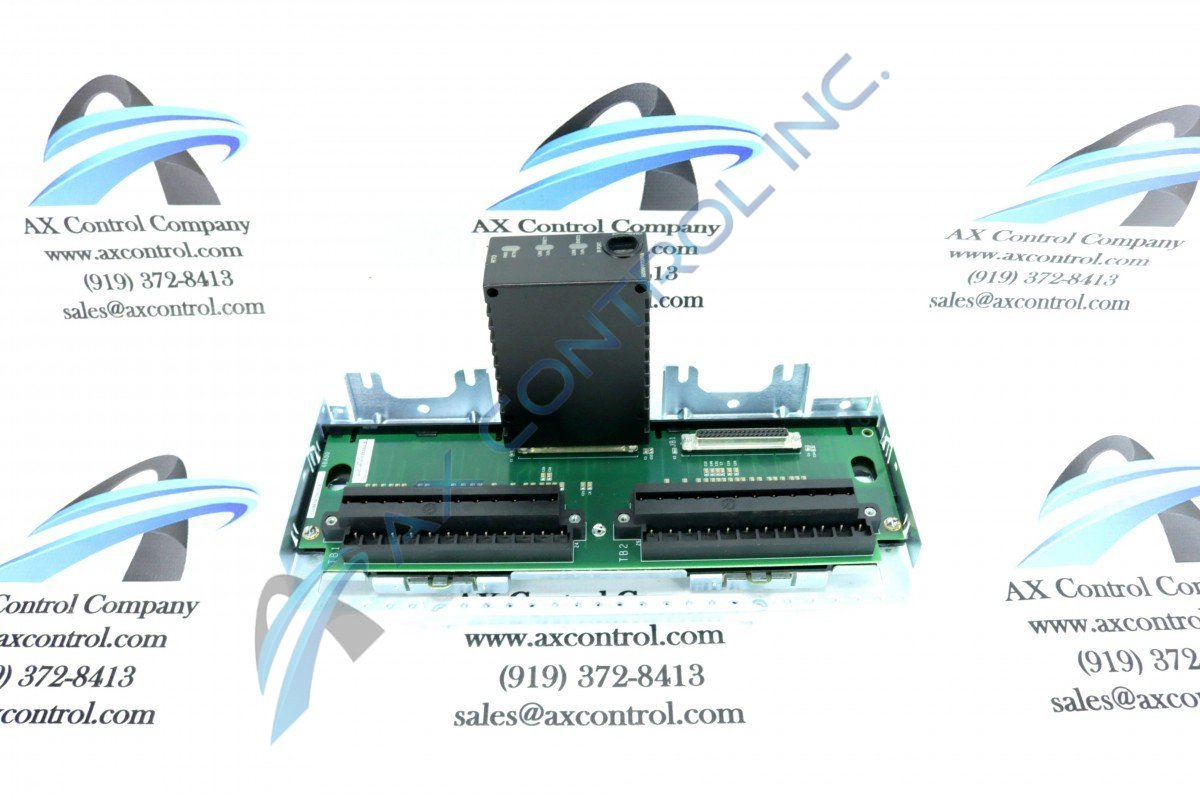

The IS200TRTDH1DCB functions as an RTD input board. There are four versions of the TRTD board, each that uses Barrier type termination boards. Some of these boards are used for simplex systems and others are designed for triple modular redundant systems. The IS200TRTDH1DCB is built with two terminal strips located along one long board edge. These can disconnect from the board as needed for maintenance. Each terminal strip has twenty-four individual screw connections. These allow eight 3-wire RTD inputs to be connected to the board. Each of these is designed to have noise suppression circuitry. The noise suppression protects against surge and high-frequency nose. There are also two multi-pin female connectors located opposite the terminal strips. The IS200TRTDH1DCB weighs approximately 1.00 pounds before it is prepared for shipment. Our team will ensure products are properly protected and padded for the journey to you. This may increase shipping weight. Your component is warrantied at no cost to you upon purchase; please see our warranty page for additional information.
This IS200TRTDH1DCB printed circuit board product offering or just PCB for short from General Electric's esteemed Mark VI Turbine Control System Series is generally not followed online by all that much originally-printed instructional manual material, which is a likely result of its current legacy GE Mark product series iteration status as encouraged by a full-series manufacturing discontinuation that took place in one of the many years beyond this IS200TRTDH1DCB product's Mark VI Series rollout. With this being the truth, this IS200TRTDH1DCB device's IS200TRTDH1DCB functional product number itself stands to serve as a decently-strong source of IS200TRTDH1DCB Board hardware component and component specification information, as it was designed to indicate a number of important IS200TRTDH1DCB PCB qualities through its carefully-designed series of functional naming elements. For instance, this IS200TRTDH1DCB device's IS200TRTDH1DCB functional product number begins with an iteration of the dual-functional IS200 series tag indicating both this IS200TRTDH1DCB device's normal Mark VI Series assembly as well as its domestic original manufacture location. Some of the other important IS200TRTDH1DCB device qualities revealed in this manner include its:
- TRTD functional product acronym
- Group one Mark VI Series grouping
- Conformal PCB coating style
- Three-fold revision table
