About the IS200TTURH1A
The printed circuit board component represented by GE part number IS200TTURH1A is one of several turbine terminal boards designed for use within the company’s Mark VI and Mark VIe systems. Both of these systems, which are part of the Speedtronic line, are specifically designed for the management of gas and steam turbines. While Speedtronic systems have been around for decades, Mark VI/e systems can be used on either simplex or triple modular redundant systems with the same amount of success. AX Control maintains a large inventory of on-hand stock of Speedtronic components for a variety of different GE systems (Mark I through Mark VIe) so we can more quickly fulfill your orders. This IS200TTURH1A printed circuit board product offering or PCB for short from GE is featured within a GE Mark product series that exists as quite the significant functional upgrade upon the previous industry standard; the Mark V Turbine Control system series of basically the same full extended product series title. This is true as the Mark VI Series introduced the alternative energy-guided wind turbine possible functional application onto the existing gas and steam functional product applications seen earlier on with the rollout of the Mark V Series. This IS200TTURH1A PCB's Mark VI Series is also desired as one of the final-released GE Mark product series making use of the patented Speedtronic control system technology.
Hardware Tips and Specifications

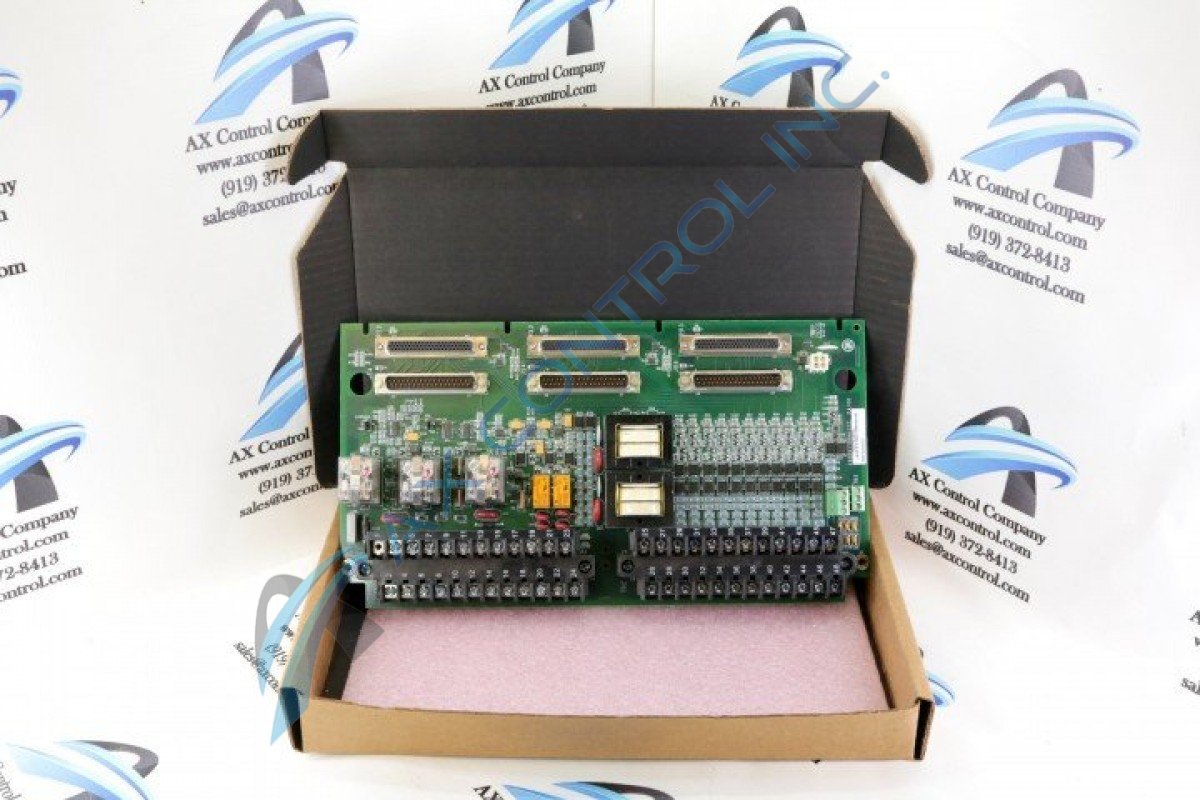

The IS200TTURH1A typically works in conjunction with other boards like the VTUR and PTUR to manage generator synchronization. The board is designed with several relays, including the K25A relay. This is driven by the synch check algorithm located originating from the VPRO board or VTUR board. Other board components on the IS200TTURH1A board include two transformers, several plug connectors, three male d-shell connectors, three female d-shell connectors, integrated circuits, variable resistors, diodes, resistors, and capacitors. Additionally, the board has two terminal blocks with screw mounts located along one long board edge. The board also has two jumper switches. These are located side by side close to one short edge. The jumpers control whether the board will accept TMR or Simplex signals. More information regarding the IS200TTURH1A’s physical characteristics can be found through original data sheets. GE manuals should be consulted for safety guidelines and handling information. This IS200TTURH1A printed circuit board product offering or PCB for short is actually not even deemed by GE as the originally-designed functional product of its specific Mark VI Series functionality. In truth, this would have to be deemed as the IS200TTURH1 parent printed circuit board device notably not taking advantage of this IS200TTURH1A product's A-rated functional product revision.
Unfortunately, all of the IS200TTURH1A-board specific hardware informations stored above on the bounds of this complimentary IS200TTURH1A personalized product page here has been reminiscent of a diligent visual inspection of the IS200TTURH1A printed circuit board itself. This was only deemed as a primary source of IS200TTURH1A Board hardware component and component specification information as the IS200TTURH1A device is not well-contextualized online within any great wealth of originally-pertinent instructional manual materials. With this being the case, the IS200TTURH1A functional product number itself can be deemed as a decent supplemental source of IS200TTURH1A Board hardware and component specification information too, as it codes for a number of relevant IS200TTURH1A Board hardware details through use of its General Electric-customized series of functionating and consecutive functional naming chunks. For instance, the IS200TTURH1A product number here starts off with a standard inclusion of the dual-functional IS200 series tag delegating this IS200TTURH1A product's normal Mark VI Series assembly as well as its domestic original GE manufacture location. Some of the other important IS200TTURH1A Board hardware details revealed in this manner include the IS200TTURH1A Board's:
- TTUR functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series grouping
- A-rated functional product revision
