IS200VATFG1A

4.84 (19)
Click a star to rate this product

4.84 (19)
Click a star to rate this product

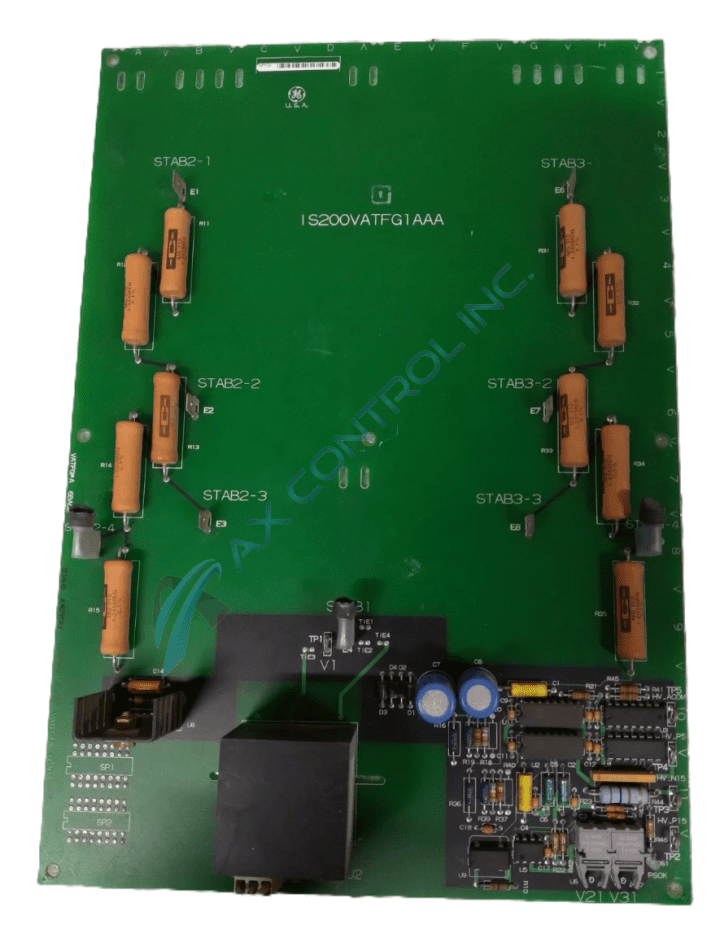

The IS200VATFG1A Voltage Attenuator Feedback Board was made for GE Drive Systems' Mark VI Turbine Control System Series.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200VATFG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200VATFG1A
SKU: IS200VATFG1AGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200VATFG1A Technical Specifications

Original Manufacturer	GE Drive Systems
Series	Mark VI Speedtronic
Functional Acronym	VATF
Functional Part Number	IS200VATFG1A
Functional Description	Voltage Attenuator Feedback Board
PCB Coating	Normal Coating
1st Functional Revision	A
Wind Turbine Application	Yes
LED Indicators	1 LED
Resistor Network Quantity	One Resistor Network Array

About the IS200VATFG1A

Functionality Tips and Specifications

The IS200VATFG1A is a Voltage Attenuator Feedback Board. This board provides:

a weakening of ac or dc bridge voltages from Innovation Series drives
attenuation achieved through series-connected precision resistors located in two identical strings on the board
- resistor strings have stab-on connectors located along the string to allow for a range of voltage inputs
  - stab-on connectors allow the user to connect one, two, three, or five resistors at any time

Hardware Tips and Specifications

The IS200VATFG1A has in its regular GE Mark product series assembly version:

two plug connectors
- labeled J1 and J2
- High-frequency power supply input and return
two fiber-optic transmitter connectors (V21/V31.)
one LED indicator
five TP test points
eight stab-on connectors
several integrated circuits
capacitors made of electrolytic and ceramic material
polyester vinyl capacitors
resistors that vary from metal film to the 1.245 MΩ resistors in series
one resistor network array

As implied in the above-attached original manual materials, this classification pertains to the IS200VATFG1A Voltage Attenuator Board's lack of a two percent frequency bias that is usually present with group 2 Mark VI Series product offerings. With this being the case, this IS200VATFG1A PCB's frequency offset can be defined as 1000 kHz.

Frequently Asked Questions about IS200VATFG1A

Where specifically was this IS200VATFG1A PCB domestically manufactured?

As with most Mark VI Series products, this IS200VATFG1A PCB has an origin in General Electric's Salem, Virginia factory plant location.

Would this IS200VATFG1A device be protected by any warranty following my purchase here today?

Yes. Upon any purchase from AX, this IS200VATFG1A product would be considered protected under a guaranteed three-year PCB warranty.

Reviews For IS200VATFG1A

Internal Review

(5.0)

This IS200VATFG1A printed circuit board gains the official correct functional product description here as a Voltage Attenuator Board given its disproportionate ownership of several relevant original instructional documents online. This IS200VATFG1A device is edited through its inclusion of a sole A-rated functional product revision; the most common product revision across all of General Electric's Mark Series Suite. This IS200VATFG1A PCB is protected by a normal PCB coating, and is available right here through AX with both repair and replacement options. - AX Control Lead Technician

Repair Services For IS200VATFG1A

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1385

Our highly skilled technicians can repair your IS200VATFG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
