About the IS200VCRCH1BBB

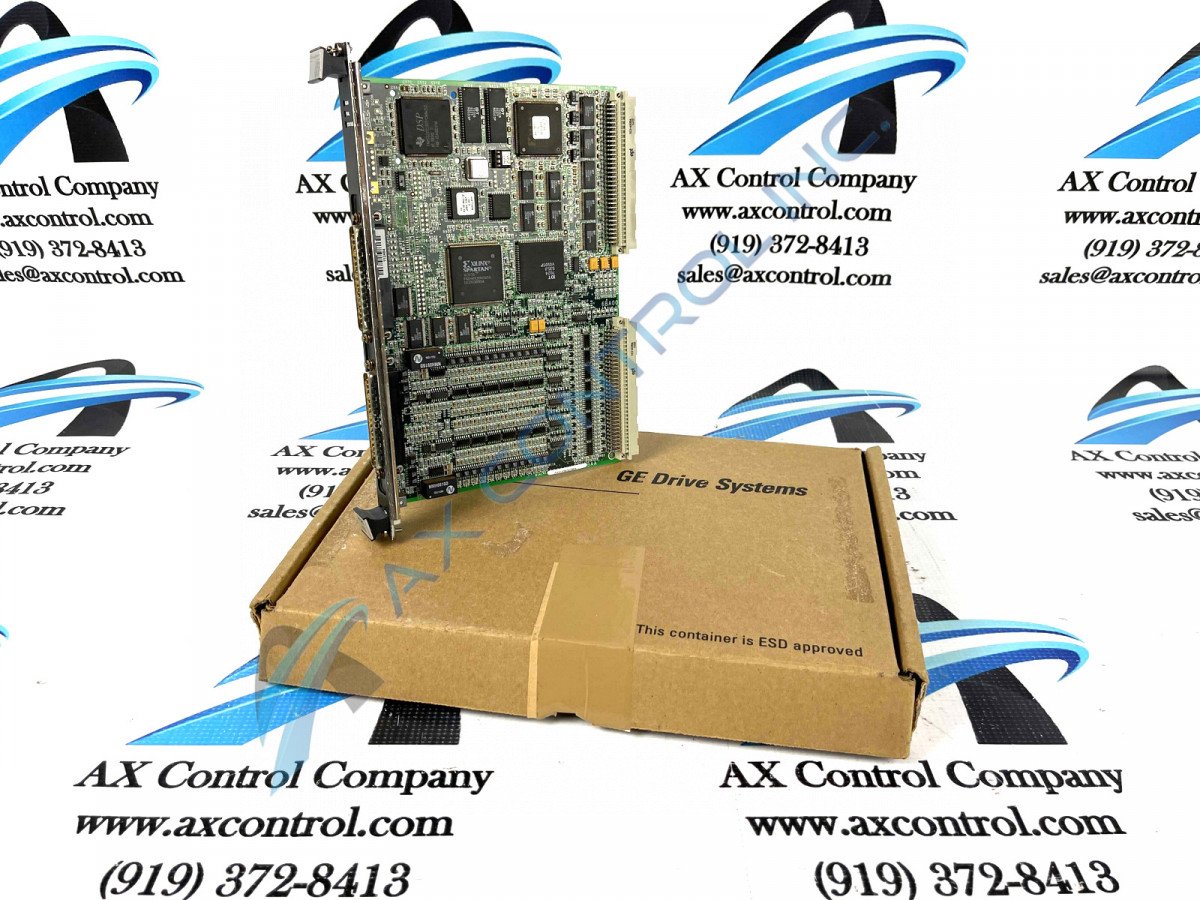

Mark VI General Electric module IS200VCRCH1BBB is a Discrete Input/Output Terminal Processor Board that was originally designed and manufactured specially for placement in the Mark VI Turbine Control System Series. The Mark VI Series that this IS200VCRCH1BBB device belongs to is something of a self-described GE Mark product series iteration, given the fact that it exists with a series of functional applications in the control and management systems of GE-compatible gas, steam, and even wind turbine automated drive assemblies. This is something of a concerted step up from the previously-released Mark V Series, at least in terms of functionality, as the Mark V Turbine Control System Series of the same full extended series name exists as pertinent to gas and steam-based functional settings alone. This IS200VCRCH1BBB device's Mark VI Series is additionally seen as attractive on its greater promotional marketplace given its status as one of the last-developed Mark product series exhibiting the Speedtronic control system technology patented by GE.
Hardware Tips and Specifications
The VCRC model is functionally the same as the VCCC model, but this unit is a single-slot version, while the VCCC model is a dual-slot model with a daughterboard. When the VCRC model is mounted in the Mark VI cabinet, it takes up less space as there is no daughterboard. This model has forty-eight inputs labeled as contact inputs that come from the TBCI model, and the outputs, of which there are twenty-four, come from the TRLY board; twelve of the outputs are solenoid outputs; the remaining twelve are dry contact relay outputs. As with any specialized General Electric product belonging to a specific Mark Series iteration, this IS200VCRCH1BBB printed circuit board product offering is offered alongside a series of unique input and output connections designed for greater functionality of the Mark VI Turbine Control System Series automated drive assembly. Each one of these various inputs and outputs should be accompanied by their own respective factory-printed nomenclature labels on this IS200VCRCH1BBB device's base printed circuit board. Some of the specific I/O Signal Types accepted by this IS200VCRCH1BBB PCB product here include its:
- Contact Input I/O Signals
- Solenoid Input I/O Signals
- Dry Contact Relay Output I/O Signals
One of the main differences between the IS200VCRCH1BBB model and the VCCC model is the location of the connectors for the contact inputs boards for the VCRC model; the connectors are located on the front of the model and labeled J33 and J44 on the front faceplate of the model. There are also three status LEDs available on the front faceplate of this model. The LEDs are labeled RUN, FAIL, and STATUS with their own corresponding color. The FAIL LED is solid red, the RUN LED will flash green, and the STATUS LED is normally off but will be a steady orange when a diagnostic alarm condition occurs. The IS200VCRCH1BBB model can be used in triple modular redundant (TMR) or simplex applications. When the model is in a TMR application, the contact input voltages will be fanned out to three VME board racks, such as the R, S, and T racks, through the JR1, JS1, and JT1 plugs on the VCRC board.
