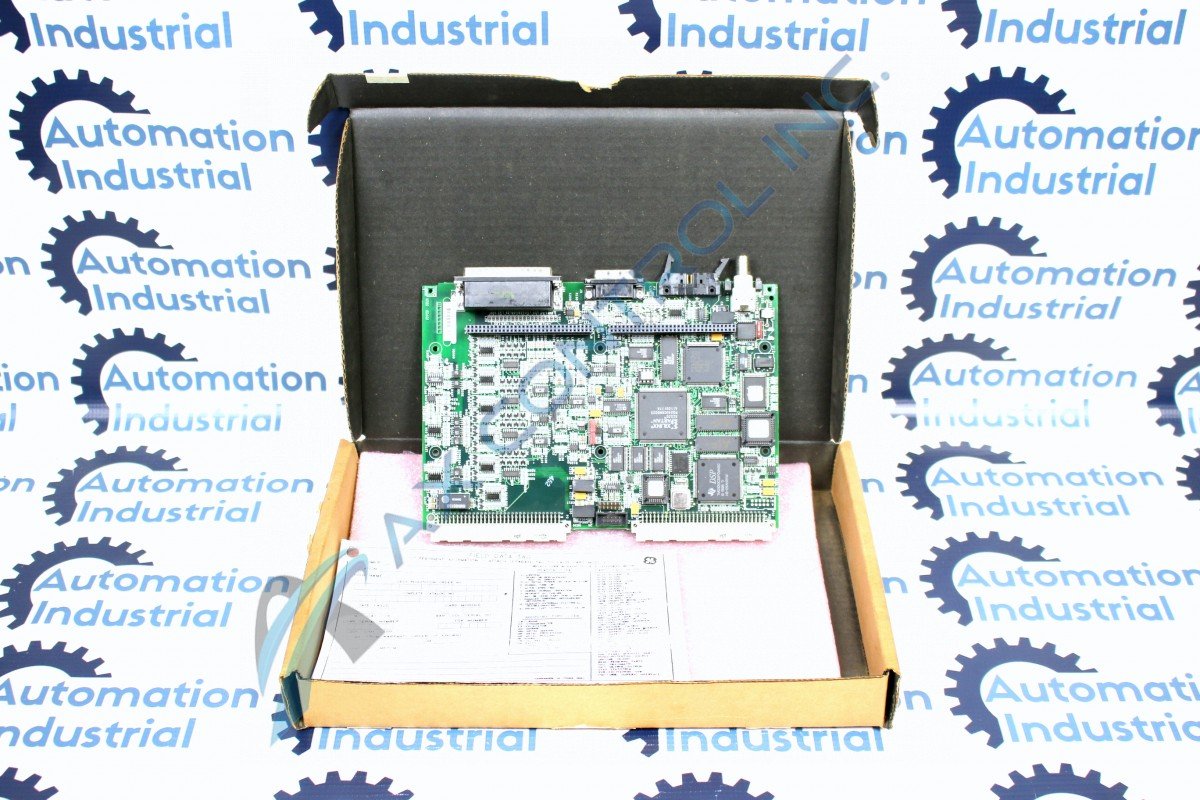

Designed as a Turbine Protection or Turbine Emergency Trip I/O Model, the IS200VPROH1BCD model is equipped with three passive speed input pickups, two emergency stop inputs, and more. The VPRO board can work with a TREG or TPRO board, depending on the application it is used in.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200VPROH1BCD to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200VPROH1BCD
SKU: IS200VPROH1BCDGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200VPROH1BCD Technical Specifications

Part Number	IS200VPROH1BCD
Series	Mark VI IS200
Product Type	I/O Board
Manufacturer	General Electric Company USA, GE Industrial Systems

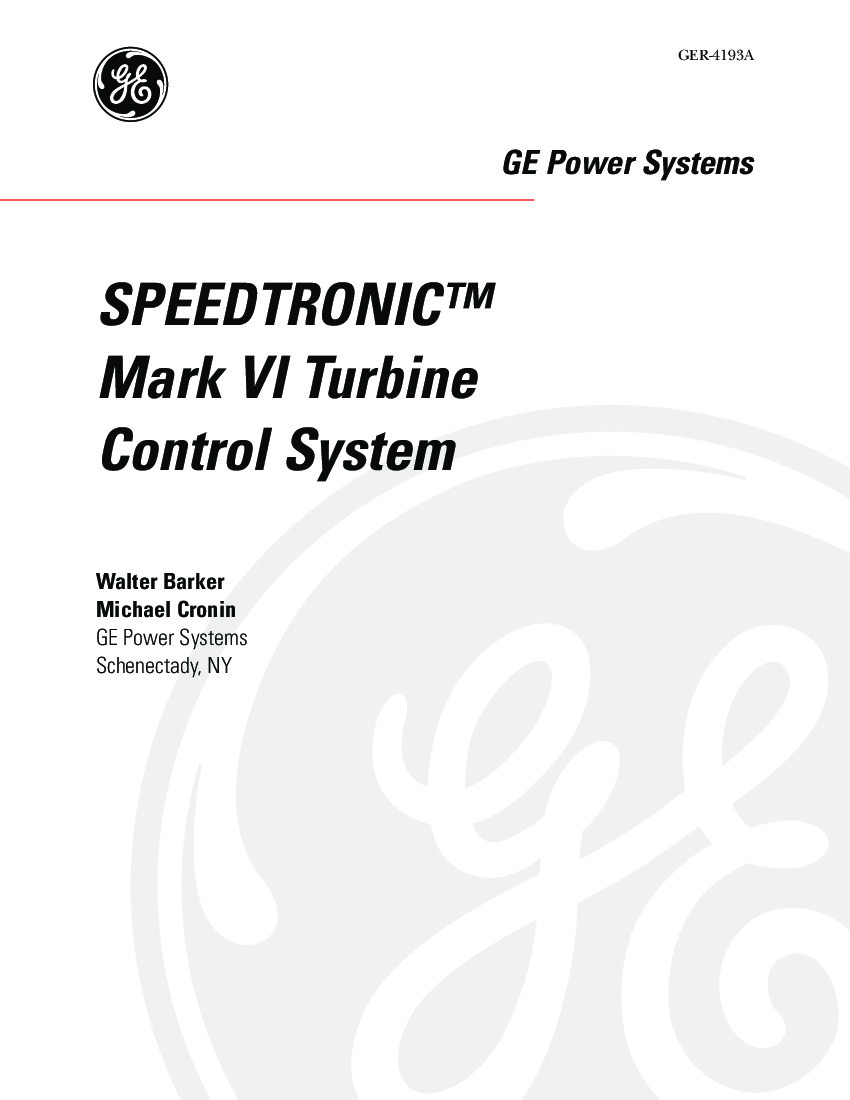

Instruction Manual	GEH-6421 and GER-4193
Frame Rate	Up to 100 Hz
MPU Pulse Rate Range	2 Hz to 14 kHz
Input Power Supply Voltage	125 V dc (70-145 V dc)
Output Power Supply Voltage	5 V dc and 28 V dc

Frequently Asked Questions about IS200VPROH1BCD

What is the purpose of the IS200VPROH1BCD?

The purpose of the IS200VPROH1BCD is to provide emergency trip functions to the Mark VI system. The VPRO board will also control the twelve relays on the attached TREG board; nine of the relays will form three groups of three to vote inputs to control the three trip solenoids provided by the TRPG and TREG terminal boards. The board also has the capability to provide an independent emergency overspeed protection system. The IS200VPROH1BCD also features backup synchronization check protection, nine thermocouple inputs, and three analog current inputs these features are used for exhaustive over-temperature protection on gas turbine applications.

Product Description

Built by General Electric, the IS200VPROH1BCD board is labeled as a Turbine Emergency Trip or Turbine Protection board. This board is used with the Mark VI system. When the board is being used in the <P> Protection Module, it will provide the emergency trip function to the system. The VPRO model can be used with the TREG, TRPG, and TRPO boards. When used with the TREG and TRPG boards, up to three trip solenoids will be connected. The TRPG will provide the negative side of the 125 V dc to the solenoids, with the TREG providing the negative. If the IS200VPROH1BCD surpasses the set parameters, it will trip emergency stop functions to ensure that the Mark VI system and surrounding boards do not obtain any damage.

The VPRO board being used in the Mark VI system allows for three redundant VPRO boards separate from the main turbine control system itself to control the trip solenoids through the attached TREG board. The IS200VPROH1BCD board can interface to allow for testing and programming functions in a VME rack, but the attached backplane will be neutralized when plugged into the Protection Module to eradicate continuity between the three sections of the Protection Module.

The IS200VPROH1BCD has an abundance of functional features; some of the features are an interface to trip solenoids, thermocouples, analog inputs, backup synch check protection, and more. For more information on how these features will function and work together, refer to the GEH-641 Mark VI System Instruction Guide.

Reviews For IS200VPROH1BCD

Internal Review

(5.0)

While other Mark VI boards require the power supply needed to operate the board to be collected from the Mark VI system itself, the VPRO does not require this. The VPRO model is equipped with its own on-board power supply and will generate 5 V dc and 28 V dc. - AX Control Tech
