IS200VPWRH1AFB

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (14)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (14)
  • Click a star to rate this product

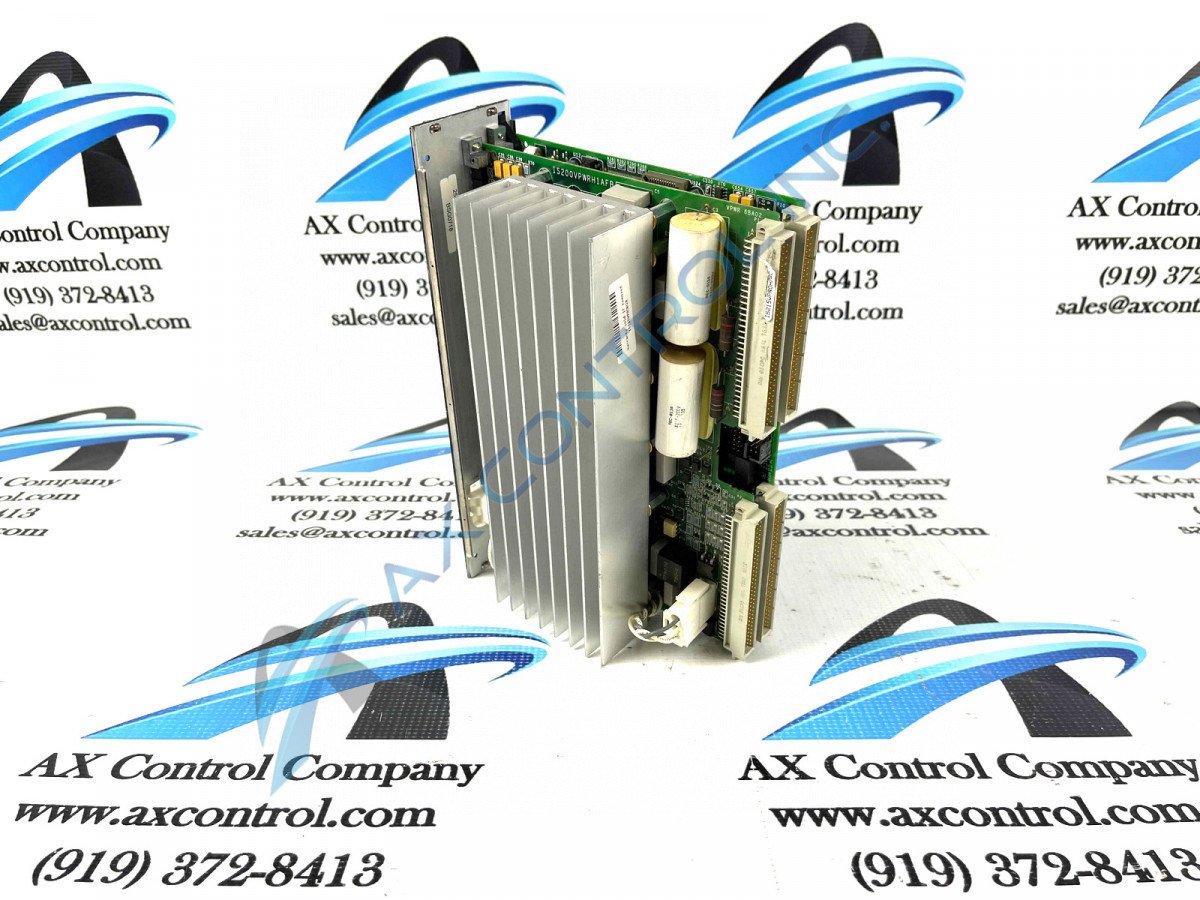

The IS200VPWRH1AFB Printed Circuit Board was manufactured for General Electric's Mark VI Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200VPWRH1AFB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200VPWRH1AFB
  • SKU: IS200VPWRH1AFBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200VPWRH1AFB Technical Specifications

Construction Two IS200VPWRH1A Boards
Functional Acronym/Abbreviation VPWR
Functional Part Number IS200VPWRH1AFB
LED Total 11
Manufacturer GE Boards and Turbine Control
Number of Sub-D pin Connectors 4
Power Supply 125 VDC or 120-240 VAC
Series Mark VI

Frequently Asked Questions about IS200VPWRH1AFB

Which of this IS200VPWRH1AFB device's revisions are backwards-compatible?

This IS200VPWRH1AFB PCB's first two functional revisions are backwards-compatible.

What does a conformal PCB coating entail?

This IS200VPWRH1AFB device's conformal coating is a thin layer of chemical PCB protection sprayed onto this IS200VPWRH1AFB device's entire base circuit board.

About the IS200VPWRH1AFB

This IS200VPWRH1AFB printed circuit board product offering or simply PCB for short from General Electric was originally designed and manufactured specifically for placement in the company's patented Mark VI Turbine Control System Series, as should have been revealed above. The Mark VI Series that this IS200VPWRH1AFB device belongs to, as it is known for short, exists with a specific set of possible functional product applications in the control and management systems of popular GE-compatible gas, steam, and wind turbine automated drive assemblies. This IS200VPWRH1AFB device's Mark VI Series is generally desirable given its nature as one of the respected retailer's final-released Mark product series iteration to make use of the patented Speedtronic control system technology across many products.

Hardware Tips and Specifications

The Printed Circuit Board IS200VPWRH1AFB module is made up of two IS200VPWRH1A boards. During operation, this model will typically be used with gas or steam turbine prime movers in a triple modular redundant architecture. When needing to communicate with other modules communication occurs with an IONet function. Please note that when this module is being used in a triple modular redundant system a protection backup module will likely be used to ensure that the board does not experience any faults that could hinder the performance of the module. There are several LEDs on the front faceplate of this module which are labeled as status, run and fail. These aforementioned LEDs are used to indicate how the board is performing. Other than the LEDs the main components of the front faceplate of the IS200VPWRH1AFB board consist of four sub-D pin connectors, an Ethernet port, a three-pin female plug connector, and even more. This IS200VPWRH1AFB PCB is edited through its attachment of two functional Mark VI Series revisions and a singular artwork configuration revision rated at grades of A, F, and finally B respectively.

When this model was designed it was designed as a sub-assembly or daughter board. When operating as a daughter board it will connect to the IS215VPROH215 board. As mentioned above the IONet function is one communication method. The other communication method that can be used is the Unit Data Highway. The Unit Data Highway or more commonly known as UDH, the UDH feature allows for the VPWR module to communicate with more than just models in the Mark VI System but with Historian Software, HMIs, Static Starters, and even more. For all of the potential communications refer to the GER-4193A Speedtronic Mark VI Turbine Control System Guide. This IS200VPWRH1AFB device's IS200VPWRH1AFB functional product number codes for a number of important IS200VPWRH1AFB device hardware qualities through a series of functional naming chunks, including this IS200VPWRH1AFB PCB's:

  • Normal Mark VI Series assembly
  • Domestic manufacture
  • VPWR functional abbreviation
  • Conformal PCB coating
  • Group one Mark VI Series grouping
  • Three-fold revision table

Reviews For IS200VPWRH1AFB

Internal Review
(4.0)

Due to a lack of production on the VPWR board, there is extremely limited information on how the board operates, what boards it can potentially operate with, and more. With this being the case, this IS200VPWRH1AFB device is still an evidently well-supported Mark VI Series PCB or circuit board product, given its attachment of a full potential of three Mark VI Series revisions as well as its adoption of the atypical yet industry-standard conformal PCB protective coating. It is also available here for both repair and replacement now. - AX Control Lead Technician
