About the IS200VPWRH1AGB
The IS200VPWRH1AGB is a PCB component created by GE for the Mark VI system. This IS200VPWRH1AGB VPRO Subassembly Board printed circuit board product offering's greater Mark VI Turbine Control System Series, as it is known at length, was developed to possess a specific series of possible functional product applications in the control and management systems of popular and GE-compatible gas, steam, and wind turbine automated drive assemblies. This must actually be highlighted as quite the significant functional upgrade on the previous industry standard of the Mark V Turbine Control System Series, as this IS200VPWRH1AGB VPRO Subassembly Board device's Mark VI Series added the more alternative energy-based wind turbine possible functional product application onto the gas and steam environments made possible earlier on with this IS200VPWRH1AGB VPRO Subassembly Board device's Mark V Series rollout before.
Hardware Tips and Specifications

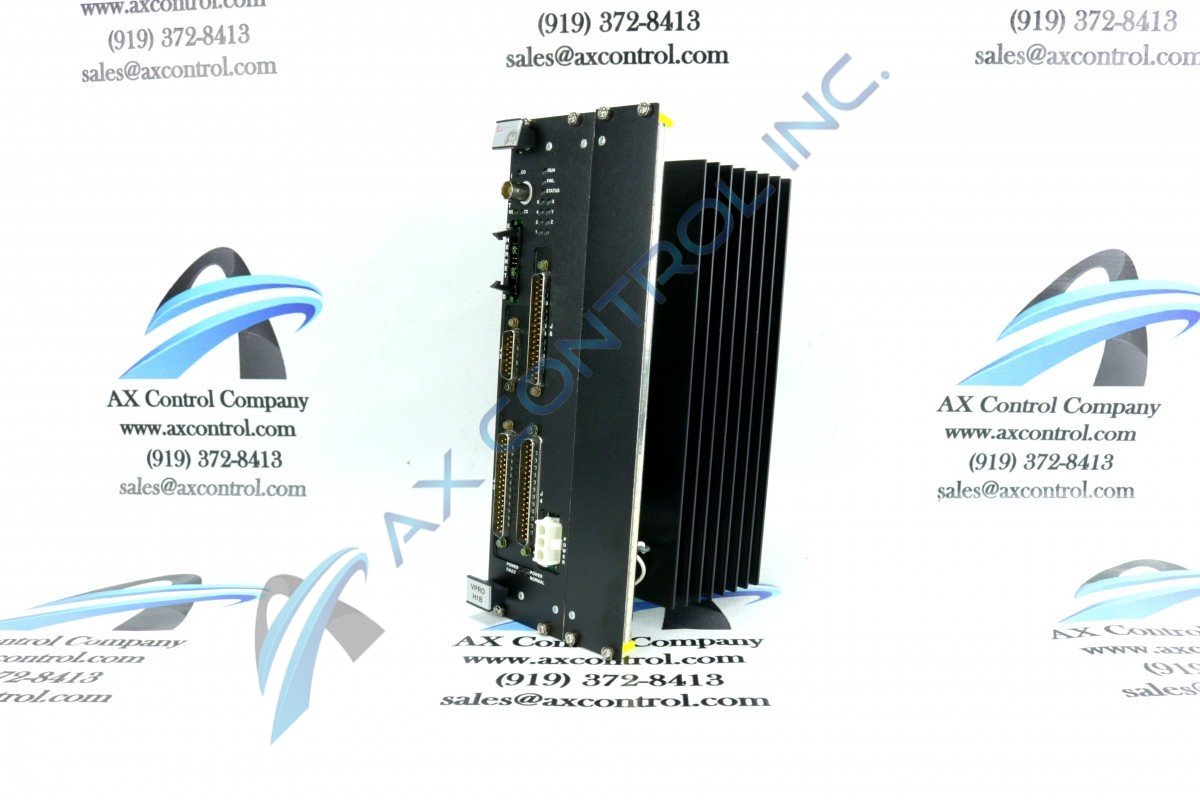

The Mark VI is one of many gas/steam turbine management systems released by GE over the last few decades as part of their Speedtronic line that began in the 1960s. The Mark VI is powered by a 125V dc battery system that is external to the control. The Mark VI can also use a 120/240V ac source that has been rectified to 125V dc. The ‘internal’ 125V dc is fuse-isolated within the MKVI power distribution module. From there, it is fed to internal power supplies. The IS200VPWRH1AGB is a daughterboard/sub-assembly of the IS215VPROH215 board; this is the top board of the assembly. The IS200VPWRH1AGB connects to the rest of the assembly using four screws mounted through factory-drilled holes and threaded through standoffs. The IS200VPWRH1AGB connects at three points to the front faceplate. The IS200VPWRH1AGB has four connectors or plugs. These include a 3-position female plug located toward the back of the board that wires into a 3-position power plug mounted into the front faceplate. The wiring occurs on the surface of the board. The board also has a single right-angled cable connector on its front edge that mounts into the front panel. The other two connectors are 64-position female plugs. It is worth noting the IS200VPWRH1AGB does not include any sort of backplane connector.
The IS200VPWRH1AGB has multiple LED indicators. This includes stacked red and green LEDs located on the front edge, as well as a line of green LEDs stacked above clear LEDs. These indicators all mount into the front faceplate and are labeled. The surface of the IS200VPWRH1AGB is populated with a single heat sink component. It has transistors, a transformer, test points, capacitors, resistors, diodes, and integrated circuits. This IS200VPWRH1AGB VPRO Subassembly Board printed circuit board product offering is not contextualized online with any great amount of originally-printed instructional documentation, as the Mark VI Series is a now-discontinued legacy GE Mark product series iteration. With this being the case, the IS200VPWRH1AGB VPRO Subassembly Board functional product number can be determined to delegate for a number of critical IS200VPWRH1AGB VPRO Subassembly Board device hardware details through its series of consecutive functional naming chunks. For instance, the IS200VPWRH1AGB VPRO Subassembly Board functional product number in this case begins with an iteration of the dual-functional VPWR functional product acronym delegating both this IS200VPWRH1AGB VPRO Subassembly Board device's normal Mark VI Series assembly as well as its domestic GE manufacture place. Some of the other IS200VPWRH1AGB VPRO Subassembly Board qualities indicated in this manner include its:
- VPWR functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series product grouping
- Three-fold revision table
