About the IS200VSVOH1AMB

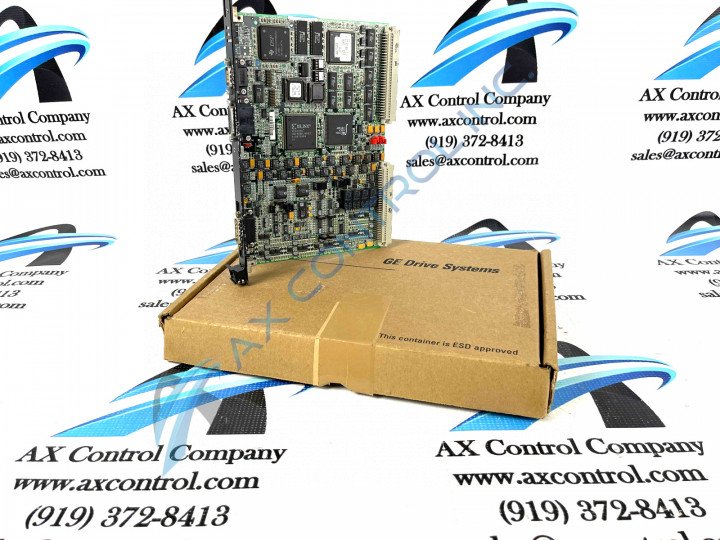

I/O Termination Board IS200VSVOH1AMB is used with several application-specific I/Os within the Mark VI Turbine Control System Series. The Mark VI Series that this IS200VSVOH1AMB VME Servo Board belongs to has to be considered a rather self-explanatory General Electric product series, given the fact that it was manufactured with a specific set of possible functional applications in the control and management systems of GE-compatible gas, wind, and steam turbine automated drive assemblies. This represents a major upgrade upon the earlier Mark IV and Mark V Series' intended possible applications, as these earlier-developed series have gas and steam turbine connectivity features alone. This IS200VSVOH1AMB VME Servo Board's greater Mark VI Turbine Control System Series is also seen as a separately-attractive GE Mark product series iteration as it is one of the trusted automated industrial seller's final-developed GE Mark product series to make use of the patented Speedtronic control system technology first seen with the initial rollout of the Mark I Series in the mid to later 1960s. This is a thrice-revised version of the IS200VSVOH1 parent PCB product.
Hardware Tips and Specifications
This model is typically used with speed/pulse rate inputs along with servo valve interfaces. When used with speed and pulse rate inputs it will be used with flow-divider feedback within servo loops. The VSVO model is used with a frequency range, the typical frequency range for this model is anywhere from 2-14k Hz. There is a sensitivity that sits at two hertz, when the sensitivity is at two hertz it will detect speed from a sixty-toothed wheel, the speed should be zero. The IS200VSVOH1AMB model uses a servo valve interface I/O. There are a variety of features that come with the VSVO performing with a servo valve interface I/O which include but are not limited to pulse-rate inputs from flow divider feedbacks used on liquid fuel systems, selectable current drivers, and ratio metric LVDTs. If the IS200VSVOH1AMB card is being used in a triple modular redundant application three servo coils are used, the purpose of which is to extend the voting of the analog outputs to the servo coil. This IS200VSVOH1AMB VME Servo Board product offering is actually not the originally-developed product of its specific Mark VI Turbine Control System Series functionality, as that would in fact be the IS200VSVOH1 parent VME Servo Board notably not making use of this IS200VSVOH1AMB VME Servo Board product's full three-fold revision table.
The IS200VSVOH1AMB model has five different I/O signal types, some of which are LVDT excitation outputs and pulse rate probe excitations. The associated terminal board that is used with the VSVO and its I/O signal types is the TSVO terminal board. If the VSVO is being used with a DIN-rail mounted terminal board it will be used with the DSVO board. There are ten points associated with the VSVO and DSVO boards. The IS200VSVOH1AMB VME Servo Board instructional manual attached above in our manuals tab for your convenience of research outlines a series of other relevant IS200VSVOH1AMB VME Servo Board hardware component and component specification details, including this IS200VSVOH1AMB VME Servo Board Mark VI Series product's:
- 200 Hz Internal Sample Rate
- Nominal 24 V dc Power Supply Voltage
- 1 % with 14-bit resolution LVDT Accuracy
- 150 V p-p to 60 K ohms Magnetic PR Pickup Signal
- 5 to 27 V p-p to 60 K ohms Active PR Pickup Signal
