About the IS200VTURH1B
The IS200VTURH1B is a Primary Turbine Protection board designed by GE for the Mark VI system. The Mark VI is one of several gas/steam turbine management systems by GE released as part of the ‘Speedtronic’ line. The MKVI is built with TMR (triple modular redundant) architecture and has a connected HMI (human-machine interface) that allows users to access turbine data from a central location. This IS200VTURH1B VME Turbine Protection Board printed circuit board product offering's greater Mark VI Turbine Control System Series, as it is known at length, has to be characterized as being highly-sought on relevant promotional automated industrial markets, as it is one of the final-developed GE Mark product series to feature the patented Speedtronic control system technology across a swathe of its relevant product offerings.
Hardware Tips and Specifications

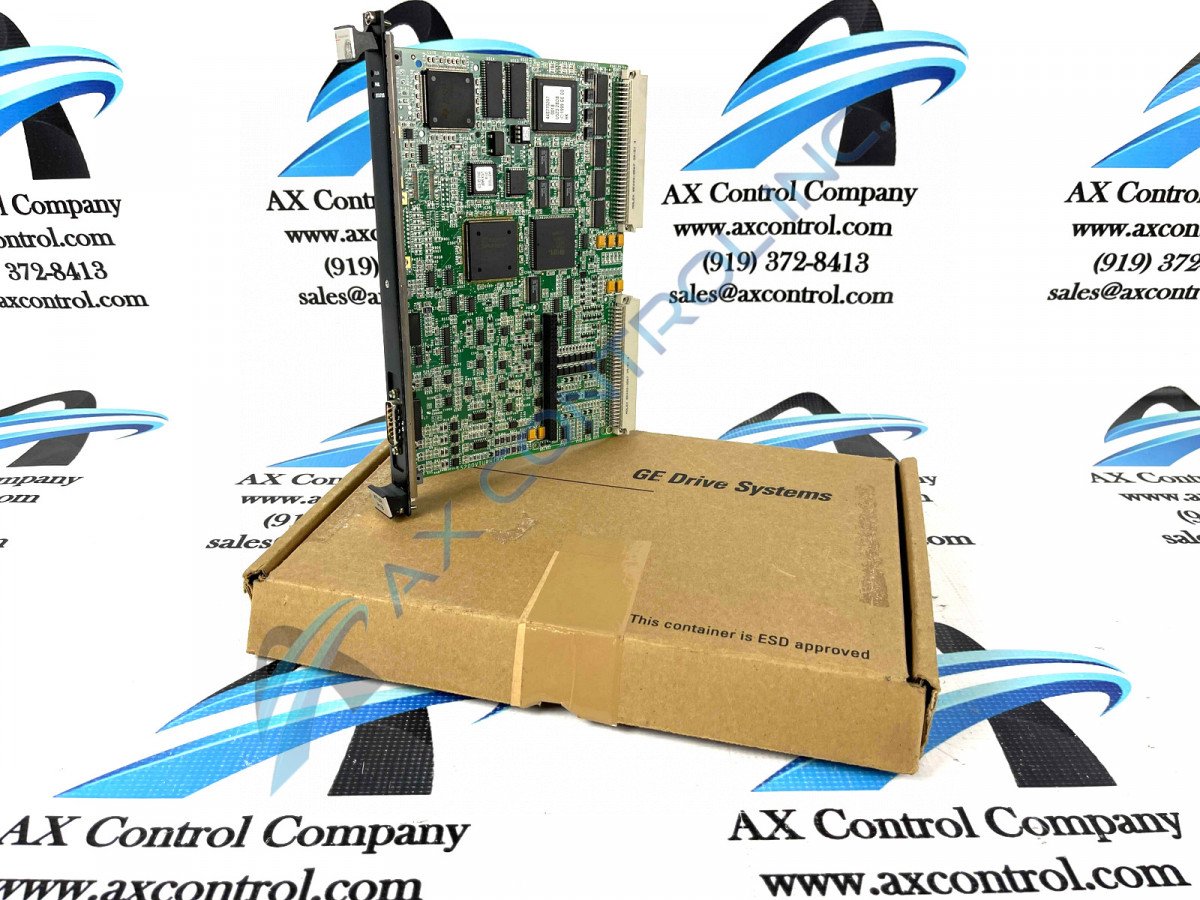

The IS200VTURH1B provides several functions, including monitoring induced shaft current/voltage (with alarming for excessive levels,) measuring turbine speed to generate the primary overspeed trip, and controlling the three primary overspeed trip relays, which belong to the TRPx terminal board. The board is also responsible for monitoring eight Geiger-Mueller flame detectors on gas turbine applications. The IS200VTURH1B has a connected single-slot faceplate that has three LED indicators and a single cable connector (J5.) The faceplate connects to the PCB via three screw connections. The PCB is built with over sixty integrated circuits, thirteen transistors, hundreds of capacitors and resistors, and diodes and inductor coils. The board has two backplanes, a female multi-position plug for connecting a daughterboard, and several connectors created from conductive dots and traces. The board is factory drilled in several locations for mounting options, including four drill holes for standoffs to support the previously mentioned daughterboard. The board is marked with codes like 6BA01, 94V-0 and Type 6. More information on the operation, installation, and functions of the IS200VTURH1B is located in the Mark VI Turbine Control System Guide (GEH-6421.) This publication also has a list of alarm faults with fault codes, fault descriptions, and possible causes listed.
Our company offers all sorts of shipping options to meet your needs, whether you want the most economical option or need it there overnight. We can even work with your emergency courier service. This IS200VTURH1B VME Turbine Protection Board printed circuit board product offering from General Electric unfortunately cannot be hailed as the original product of its intended Mark VI Turbine Control System Series functional role. That would in fact have to be deemed as the IS200VTURH1 Parent VME Turbine Protection Board notably not utilziing this IS200VTURH1B VME Turbine Protection Board product's singular B-rated functional product revision. This fact was discovered upon an analysis of the IS200VTURH1B VME Turbine Protection Board functional product number itself, which was created by General Electric to indirectly indicated a handful of more critical IS200VTURH1B VME Turbine Protection Board hardware details through a series of consecutive functional naming chunks. For starters, this IS200VTURH1B VME Turbine Protection Board device's IS200VTURH1B VME Turbine Protection Board functional product number begins with an iteration of the dual-functional IS200 series tag that highlights both this IS200VTURH1B VME Turbine Protection Board PCB's normal Mark VI Series assembly version on top of its domestic original GE manufacture location. Some of the other important IS200VTURH1B VME Turbine Protection Board device qualities indicated in this fashion include its:
- VTUR functional product abbreviation
- Conformal PCB coating style
- Group one Mark VI Series grouping
- Sole product revision
