About the IS200WNPSH1ABA
TheIS200WNPSH1ABA printed circuit board product offering here, as described in our brief product description above, was originally designed and manufactured for esteemed automated manufacturer General Electric's highly-sought Mark VI Turbine Control System Series. This Mark VI Series is a newer-developed Mark series from General Electric, and makes marked improvements on the prior Mark V Series, as the Mark VI Series has potential applications in the management and control systems of General Electric-compatible wind, steam, and gas turbines; in a difference from the Mark V Turbine Control System Series' limited steam and gas turbine automated drive assembly applications. This IS200WNPSH1ABA printed circuit board or PCB for short's greater Mark VI Series is additionally held in high esteem on the greater figurative automated industrial marketplace as it is one of the lastly-developed General Electric Mark Series to incorporate the patented Speedtronic control system technology across a range of its different offerings.
Hardware Tips and Specifications

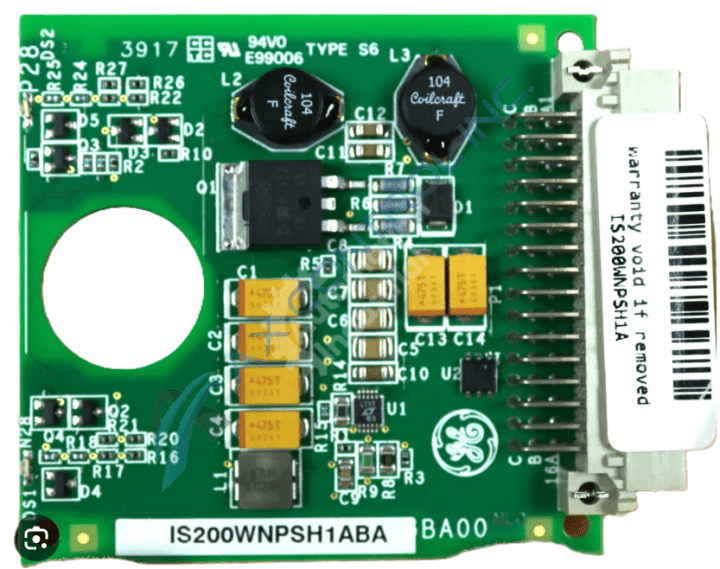

This IS200WNPSH1ABA Mark VI Series product offering is definable as a Power Supply Daughter Card, but this is not official functional product description, and has been sourced from other Mark VI Series secondary documents like this IS200WNPSH1ABA personalized product page here. This IS200WNPSH1ABA device's attribution as a Power Supply Daughter Card in lieu of a Power Supply Daughter Board is more than likely symptomatic of this IS200WNPSH1ABA device's small general product dimensions, as it does not make use of an entire Mark VI Series base printed circuit board. The base circuit card of this IS200WNPSH1ABA device has been factory drilled in four separate locations to support convenient and safe IS200WNPSH1ABA Card mounting on its greater Mark VI Series automated drive assembly. A singular one of these factory-drilled holes is significantly larger than the other four, and is placed more centrally in this IS200WNPSH1ABA device's layout, suggesting a possible acceptance of a drum-style electrolytic capacitor component. Numerous various voltage-limiting hardware components including different styles of Mark VI Series capacitors, transistors, and resistors are visible on this IS200WNPSH1ABA device's base circuit card.
While a visual inspection of the IS200WNPSH1ABA Power Supply Daughter Card is certainly a valid primary source of relevant hardware component and component specification information, so too is a breakdown of the IS200WNPSH1ABA functional product number, given this IS200WNPSH1ABA Mark VI Series product's low general availability of originally-printed instructional manual materials. The IS200WNPSH1ABA functional product number delegates many individual IS200WNPSH1ABA Board details in consecutive functional naming components. For starters, the IS200WNPSH1ABA functional product number is started by the dual-functional IS200 series tag indirectly stating this IS200WNPSH1ABA device's normal Mark VI Series assembly version as well as its domestic original manufacture location. Some of the other relevant hardware details revealed in this IS200WNPSH1ABA device's functional product number include its WNPS functional product number, its conformal PCB coating style, its A-rated primary functional product revision, its B-rated secondary artwork revision, and finally its signature A-rated artwork configuration revision.
