About the IS215UCCAH3
This IS215UCCAH3 model was originally manufactured by industry giant General Electric's shell company GE Energy; specifically for use in their Mark VIe Speedtronic series of wind turbine controls and control components. While this model is considered an unrevised parent board product in the Mark VIe series, it does incorporate a special assembly type, as distinguished through the inclusion of the initial "IS215" product series tag present at the beginning of this product's individualized part number. This product may be more often referred to by its industry-known functional acronym of UCCA, although that acronym applies too to the IS215UCCAM03 module assembly.
Hardware Tips and Specifications

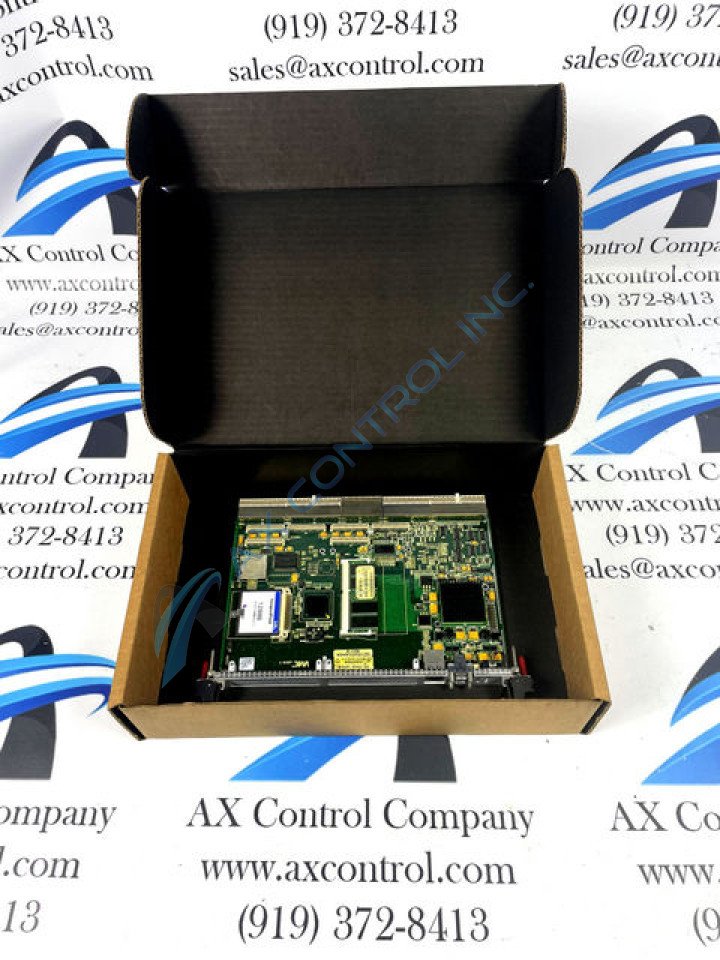

The IS215UCCAH3 circuit board can be specifically defined as the Controller Compute Engine Board crucial to the functionality of the greater Mark VIe Wind Turbine Control assembly. This UCCA-abbreviated board can more specifically be identified as a member of the briefly-aforementioned IS215UCCAM03 module assembly. The IS215UCCAM03 module assembly includes this IS215UCCAH3 board, combined with 128 MB of flash memory, 128 MB of DRAM, and the IS200EPMC daughterboard. The IS215UCCAH3's primary responsibility in terms of the IS215UCCAM03 assembly is to handle all of the CPCI processing capabilities for the greater drive configuration.
While it is very important to understand the placement and relevance of the IS215UCCAH3 Controller Computer Engine Board is respect to its greater IS215UCCAM03 module assembly; it is of similar elevated importance to understand the various component parts that contribute to the total functionality of the IS215UCCAH3 board itself. The IS215UCCAH3, while a special-assembly model, is classified as a single-slot board, not requiring the installation or attachment of a secondary printed circuit board for normative function. This Mark VIe Series printed circuit board makes use of the sophisticated and industry-respected Intel Celeron Processor, which runs at a processing speed of 650 mHz. This IS215UCCAH3 Engine Board also includes a series of ports for connectivity purposes. The UCCA board's faceplate includes a singular RJ-45 ethernet port, which was included with the intended functionality of providing connectivity to the greater drive assembly's Unit Data Highway or UDH. Two other ports exist on the face plate of the IS215UCCAH3, labeled as PCI Mezzanine Card Ports. These ports are connected to a series of PCI Mezzanine Card Sites, which can accept two PCI Mezzanine Cards in total. The board assembly of this Printed Circuit Board seems to not make use of a singular PCI Mezzanine Card, PCI Mezzanine Card Port, or corresponding PCI Mezzanine Card Site; as both of the PCI Mezzanine Card Ports present in the IS215UCCAH3's assembly have been factory-blocked for voltage storage and protection purposes.
A series of LED indicators are present on the face plate of the IS215UCCAH3 Controller Computer, tasked with the responsibility of recording and indicating various functional or voltage failures for the UCCA board. These LEDs are labeled, as to indicate normative status, power status, and diagnositc fault statuses for the IS215UCCAH3. This Mark VIe series product is available for both repair and replacement right here at AC Control, with a standard 1-2 week lead time on repairs.
