IS220PPDAH1B
-
4.93 (14)
Click a star to rate this product
- 4.93 (14)
- Click a star to rate this product

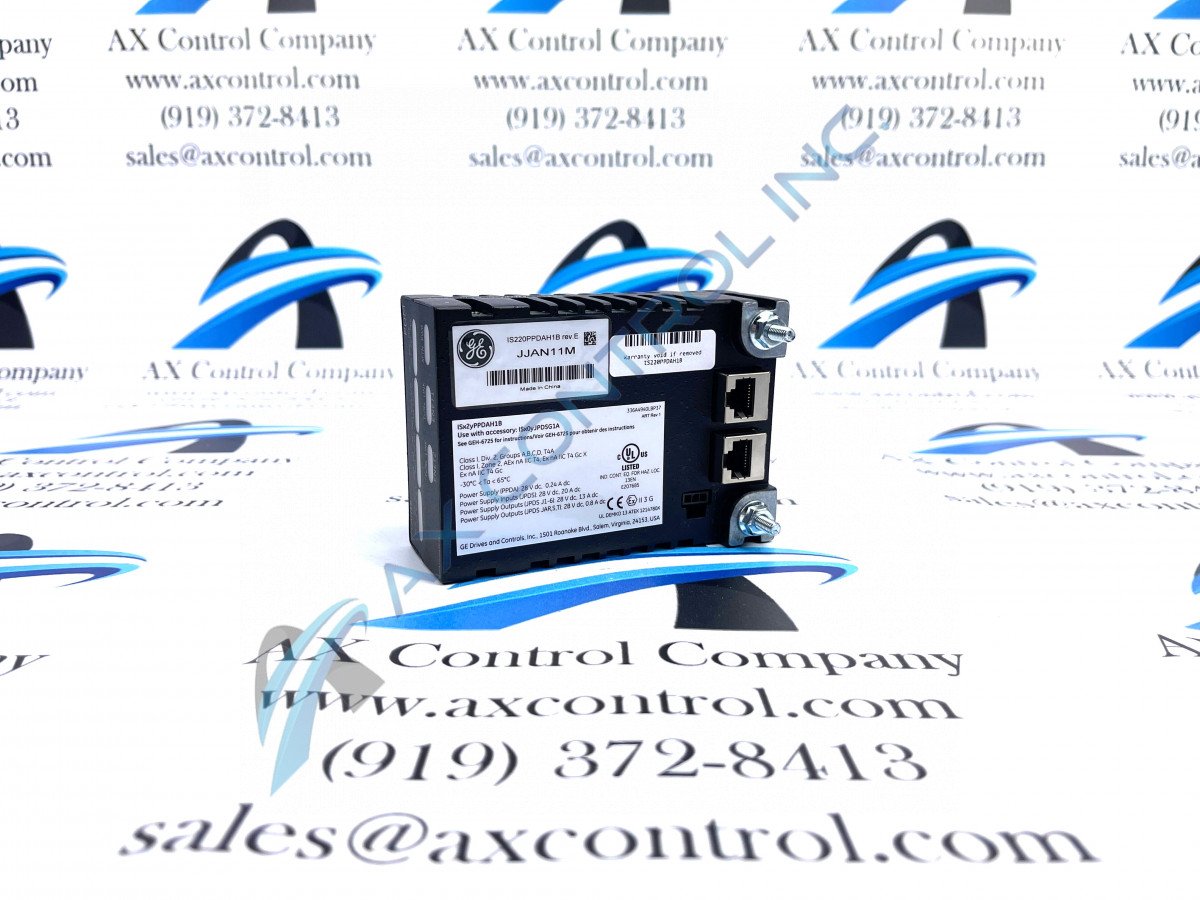

This IS220PPDAH1B Power Distribution Feedback Module was manufactured for General Electric's Mark VIe Turbine Control System Series.
* Learn More About Product Conditions
* Posted pricing available for website purchases only.
Product Conditions
New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.
New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.
Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.
About the IS220PPDAH1B
This IS220PPDAH1B Power Distribution Feedback Module is an integral member of General Electric's Mark VIe Turbine Control System Series, as explained in its brief product description inserted above. This IS220PPDAH1B device's greater Mark VIe Series, as indicated by its full extended series name, has specific applications across a range of different turbine applications, including in the control and management systems of General Electric-compatible steam, gas, and wind turbine automated drive assemblies. With this being true, this IS220PPDAH1B device's general automated industrial market demand is secured further through this IS220PPDAH1B device's Mark VIe Turbine Control System Series' existence as one of the final-developed GE Mark product series to make use of the patented, highly-esteemed Speedtronic control system technology first introduced to the greater market with the rollout of the previous Mark I Series in the mid to late 1960s.
Hardware Tips and Specifications
The IS220PPDAH1B board is a Power Distribution System Feedback model produced by General Electric for the Mark VIe System. This model is used for conditioning board feedback signals and can also provide Ethernet interfaces to the attached controllers. Feedback for this pack is arranged to be plug and play which will use the electronic IDs it is plugged into to determine the power for the attached power distribution models. Information from the power distribution models will proceed to be used to occupy the IONet output to provide correct feedback from the conjoining. This IS220PPDAH1B device is actually not the originally-developed product of its specific Mark VIe Series functionality; that would have to be considered the IS220PPDAH1 parent Power Distribution Feedbacck Module that is notably not making use of this IS220PPDAH1B device's B-rated primary functional product revision.
While the IS220PPDAH1B pack is compatible with the JPDC, JPDS, JPDM, and JPDG power boards it is only compatible with the feedback signals from the JPDB, JPDF, and JPDE boards. Typically this PPDA pack is mounted to one of the following boards; JPDM, JPDC, or JPDS. The pack can potentially be connected to more boards by using a fifty-pin ribbon cable jumper through the wiring of pin one-to-pin connectors. Auto-Reconfiguration is one of the main operating components of the IS220PPDAH1B pack. The auto-reconfiguration feature allows for the I/O pack to be easily replaced as the replacement pack will not have to be reconfigured. Please note that while an auto-reconfiguration is in progress the user will not be able to reboot until after the reconfiguration has been completed. Other downloads that need to take place cannot occur while the reconfiguration is in progress.
IS220PPDAH1B Manuals, White Papers, Data Sheets, and Troubleshooting
- General Electric IS220PPDAH1B GEH-6721L Mark VIe Control Vol. II System Hardware Users Guide.pdf
- IS220PPDAH1B GEH-6861 Manual Mark VIeS Functional Safety System Equipment in HazLoc.pdf
- IS220PPDAH1B GEH-6855_Vol_II Mark VIeS Functional Safety Systems Vol II System Guide.pdf
- IS220PPDAH1AB GEH-6855_Vol_I Mark VIeS Functional Safety Systems Vol I System Guide.pdf
IS220PPDAH1B Technical Specifications
Part Number | IS220PPDAH1B |
Output Voltage | 28 VDC |
Number of Self-Diagnostic Tests Performed | Five |
Mounting Location | On JPDS, JPDC, or JPDM Boards |
Manufacturer | GE Energy |
Manual | GEH-6721 Mark VIe Control Vol. II System Hardware Guide |
Functional Acronym/Abbreviation | PPDA |
Diagnostic Signals | Two 115/230 VAC Analog Feedbacks, Local Ground Signal, Six Fused AC, and More |
Detection with JPDE Board | Ground Fault Detection |
Reviews For IS220PPDAH1B
Internal Review
(4.0)The IS220PPDAH1B pack is an optional and non-critical element of the Mark VIe/VIeS System. No provisions are needed for redundancy as a connected JPDx board is not used. This is an extra part not necessarily needed for the proper function of the Mark VIe/VIeS System. Easy installation and straightforward setup. - AX Control Technician
IS220PPDAH1B Technical Specifications
Part Number | IS220PPDAH1B |
Output Voltage | 28 VDC |
Number of Self-Diagnostic Tests Performed | Five |
Mounting Location | On JPDS, JPDC, or JPDM Boards |
Manufacturer | GE Energy |
Manual | GEH-6721 Mark VIe Control Vol. II System Hardware Guide |
Functional Acronym/Abbreviation | PPDA |
Diagnostic Signals | Two 115/230 VAC Analog Feedbacks, Local Ground Signal, Six Fused AC, and More |
Detection with JPDE Board | Ground Fault Detection |
About the IS220PPDAH1B
This IS220PPDAH1B Power Distribution Feedback Module is an integral member of General Electric's Mark VIe Turbine Control System Series, as explained in its brief product description inserted above. This IS220PPDAH1B device's greater Mark VIe Series, as indicated by its full extended series name, has specific applications across a range of different turbine applications, including in the control and management systems of General Electric-compatible steam, gas, and wind turbine automated drive assemblies. With this being true, this IS220PPDAH1B device's general automated industrial market demand is secured further through this IS220PPDAH1B device's Mark VIe Turbine Control System Series' existence as one of the final-developed GE Mark product series to make use of the patented, highly-esteemed Speedtronic control system technology first introduced to the greater market with the rollout of the previous Mark I Series in the mid to late 1960s.
Hardware Tips and Specifications
The IS220PPDAH1B board is a Power Distribution System Feedback model produced by General Electric for the Mark VIe System. This model is used for conditioning board feedback signals and can also provide Ethernet interfaces to the attached controllers. Feedback for this pack is arranged to be plug and play which will use the electronic IDs it is plugged into to determine the power for the attached power distribution models. Information from the power distribution models will proceed to be used to occupy the IONet output to provide correct feedback from the conjoining. This IS220PPDAH1B device is actually not the originally-developed product of its specific Mark VIe Series functionality; that would have to be considered the IS220PPDAH1 parent Power Distribution Feedbacck Module that is notably not making use of this IS220PPDAH1B device's B-rated primary functional product revision.
While the IS220PPDAH1B pack is compatible with the JPDC, JPDS, JPDM, and JPDG power boards it is only compatible with the feedback signals from the JPDB, JPDF, and JPDE boards. Typically this PPDA pack is mounted to one of the following boards; JPDM, JPDC, or JPDS. The pack can potentially be connected to more boards by using a fifty-pin ribbon cable jumper through the wiring of pin one-to-pin connectors. Auto-Reconfiguration is one of the main operating components of the IS220PPDAH1B pack. The auto-reconfiguration feature allows for the I/O pack to be easily replaced as the replacement pack will not have to be reconfigured. Please note that while an auto-reconfiguration is in progress the user will not be able to reboot until after the reconfiguration has been completed. Other downloads that need to take place cannot occur while the reconfiguration is in progress.
IS220PPDAH1B Manuals, White Papers, Data Sheets, and Troubleshooting
- General Electric IS220PPDAH1B GEH-6721L Mark VIe Control Vol. II System Hardware Users Guide.pdf
- IS220PPDAH1B GEH-6861 Manual Mark VIeS Functional Safety System Equipment in HazLoc.pdf
- IS220PPDAH1B GEH-6855_Vol_II Mark VIeS Functional Safety Systems Vol II System Guide.pdf
- IS220PPDAH1AB GEH-6855_Vol_I Mark VIeS Functional Safety Systems Vol I System Guide.pdf
Reviews For IS220PPDAH1B
Internal Review
(4.0)The IS220PPDAH1B pack is an optional and non-critical element of the Mark VIe/VIeS System. No provisions are needed for redundancy as a connected JPDx board is not used. This is an extra part not necessarily needed for the proper function of the Mark VIe/VIeS System. Easy installation and straightforward setup. - AX Control Technician
