About the IS420CCGAH2A
This IS420CCGAH2A modular assembly product offering from General Electric was originally designed and manufactured for placement in their Mark VIe or their Mark VIeS systems Series. The Mark VIe or VIeS Series that this IS420CCGAH2A printed circuit board exists as a member of has specific applications in at least the control and management systems of popular General Electric-compatible gas, steam, and wind turbine automated drive assemblies. This is true because this is the full scope of the previously-developed Mark VI Series' applications; this IS420CCGAH2A product's possible Mark VIe or Mark VIeS series are likely even more well-rounded in terms of their versatile possible applications. This IS420CCGAH2A modular assembly device's greater Mark VIe or Mark VIeS Series should be highly-desired on the greater general automated industrial marketplace no matter what, as these two series exist as some of the final General Electric-developed mark product series to incorporate the patented Speedtronic control system technology across a swathe of different options.
Hardware Tips and Specifications

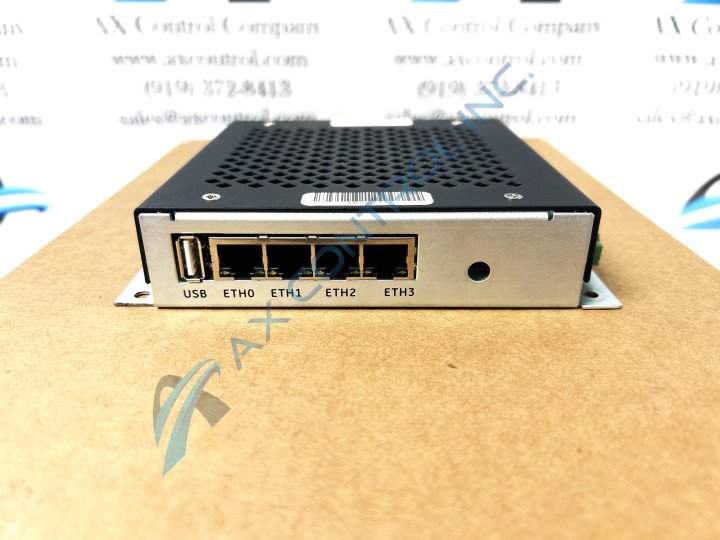

To achieve its specifically-designated General Electric Mark VIe Series functional product role, this IS420CCGAH2A device incorporates a standardized number of Mark VIe Series specialized hardware components into its special modular assembly, the first of which exists as this IS420CCGAH2A product's special modular assembly itself. Any piece of circuitry or individual hardware component in this IS420CCGAH2A device's assembly should be well-protected by its black plastic exterior case, which is only permeated in several purposeful port locations. Four metal tabs just out from this IS420CCGAH2A device's large attached metal installation backplane; these have been included in this IS420CCGAH2A device's special Mark V Series assembly for safe and normative CCGA module installation practice outside of the typical Mark VIe Series VME Rack Mounting Assembly. In terms of this IS420CCGAH2A product's ports, the IS420CCGAH2A features four total Ethernet ports labeled with factory-printed nomenclature labels ranging from ETH0 to ETH3. A printed separation line has been made in between this IS420CCGAH2A product's ETH0 port and the rest of them; its purpose is not decipherable currently. Some of the other ports in this IS420CCGAH2A device's assembly include a UCB-labeled UCB port as well as a Micro-SD card slot and a standard RS-232 communication port.
While the various ports available in this IS420CCGAH2A device's special modular Mark VIeSeries assembly are certainly important to be cognizant of, their placement on the IS420CCGAH2A personalized product page here is truly more reminiscent of their visible nature on the IS420CCGAH2A device's assembly. A visual inspection and other alternative measures of inspection are necessitated due to this IS420CCGAH2A product's Mark VIe Series' concerted lack of online-available originally-printed instructional manual materials. With this in mind, the IS420CCGAH2A functional product number itself can also be identified as a decent source of IS420CCGAH2A Board hardware component information, as it counts various IS420CCGAH2A Board details in a series of GE-formulated functional naming component segments. To demonstrate, the IS420CCGAH2A functional product number is started off through an instance of the IS420 special series tag, which in this instance reveals the IS420CCGAH2A board's special modular Mark VIe Series or Mark VIeS Series assembly as well as its typical GE domestic location of original manufacture. Some of the other relevant hardware details revealed through this IS420CCGAH2A Control Communication Gateway Module's formulated functional product number includes its CCGA functional product abbreviation, its conformal style of PCB surface coating, its group two Mark V Series product grouping, and finally its sole A-rated primary functional product revision.
