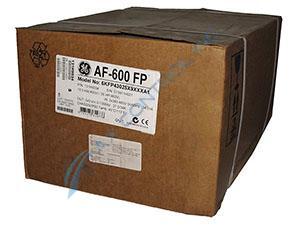

6KFP43040X9XXXA1

About the 6KFP43040X9XXXA1

6KFP43040X9XXXA1 is a fan and pump drive that is manufactured by GE for the AF-600 series. The horsepower rating is 40, the kW rating is 30, the rated output amps are 61, and the overload amps at 110% for one minute are 67.1. This unit includes an IP20 chassis and a keypad. The keypad may be mounted remotely from the drive. The input power is 460 VAC. The vibration resistance is 1.0 G. The fan cools this drive so that the temperature remains in the correct range (-10° to 50°C). Above 45°C, the drive must be derated. The approval standards for this drive are CE, UL, cUL, and C-Tick.

The maximum voltage imbalance is 3% of the rated supply voltage. The true power factor is greater than 0.9 of the nominal at the rated load. The displacement power factor is greater than 0.98. The rated output voltage is 0-100% of the supply voltage. The output frequency is 0-590 Hz. Switching on the output is unlimited. The acceleration and deceleration times range from 1-3600 seconds. The control method is sinusoidal PWM control. For the process controller, the control can be normal or inverse, and the anti windup can be disabled or enabled. The start speed is 0.0-200 Hz, the proportional gain is 0.00-10.00, the integral time is 0.1-10000.0 ms, the differential time is 0.0-10 s, the differential gain is 1.0-50.00, the feed forward factor is 0-500%, and the on reference bandwidth is 0-200%.
