6KAF343005ESA1

About the 6KAF343005ESA1

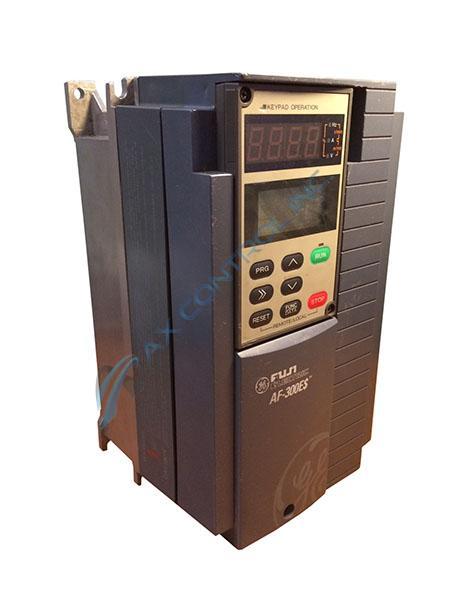

The General Electric Fuji Electric 6KAF343005ESA1 is a member of the AF-300E$ drive series. This 5 horsepower drive combines speed and precision with dual 16-bit microprocessors to offer exceptional performance. A 3 phase unit, 6KAF343005ESA1 inputs 460 VAC with a frequency of 50/60Hz and outputs 380-480 VAC with a frequency range of 0.2-400Hz. A Pulse Width Modulation (PWM) torque vector control system pairs with integrated variable and constant torque ratings to provide powerful and consistent drive outputs.

As 6KAF343005ESA1 is housed in a NEMA 1 enclosure, the drive is suitable for indoor installation only. The drive measures 10.24in (H) x 5.91in (W) x 5.71in (D) and weighs only 8.4 pounds, allowing for easy installation. The drive features a mounted keypad panel featuring an LCD programming screen and an LED drive data display. The unit is programmable to display messages in English, Spanish, French, and Japanese, allowing for all needs of the operator to be met. The front mounted keypad is removable by loosening the two mounting screws securing it to the face. Removing the keypad panel allows for remote operational monitoring and usage.

Regulating the operating environment is imperative to maintain the integrity of the drive. The facility housing 6KAF343005ESA1 should maintain an ambient temperature no lower than -10℃, or 14℉, and no higher than 50℃, or 122℉. Should the temperature be expected to exceed 40℃, or 104℉, the ventilation covers on the drive must be removed to prevent drive damage. All storage and installation guidelines are necessary to maintain the drive. Refer to the corresponding manual for all safety and installation protocols.
