6KE$243001X1A1

About the 6KE$243001X1A1

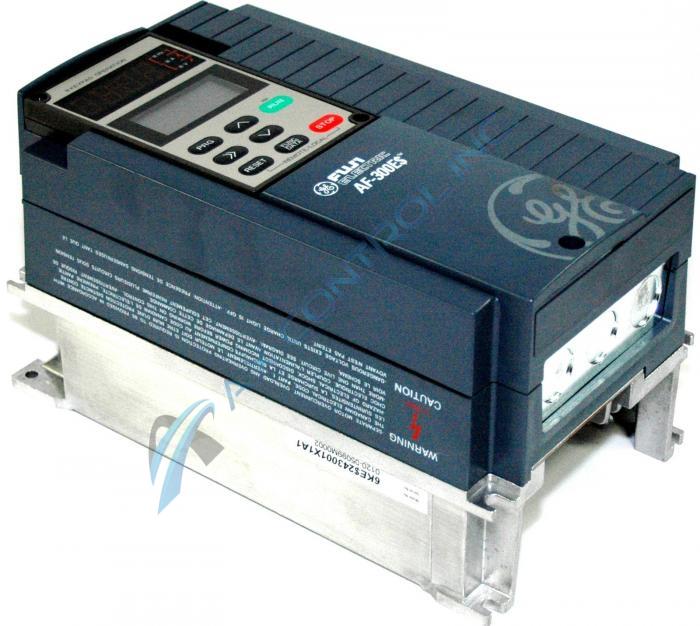

The General Electric Fuji Electric 6KE$243001X1A1 is a 1 horsepower drive belonging to the AF-300E$ series. This 3 phase drive is capable of inputting 460 Volts with a frequency of 50/60Hz, while outputting 380-460 Volts with a frequency range of 0.2-400Hz. The unit features a Pulse Width Modulation (PWM) Scalar power control for better performance. A factory installed keypad is mounted on the front plate of the drive.

A NEMA 1 enclosure surrounds the unit, suitable for indoor open or panel mounting. 6KE$243001X1A1 measures 10.24in (H) x 5.91in (W) x 5.71in (D) and weighs 8.4 pounds. The panel mounted to the front of the drive features 8 dual function keys, a digital monitor, and an LCD graphic display. It is attached to the drive by two mounting screws. Loosening the screws allows for easy removal of the keypad and for remote operation and display.

The keypad panel includes a PROGRAM Key, a FUNCTION key, a SHIFT Key, a RUN Key, a STOP Key, a RESET Key, and UP/DOWN Keys. The LCD brightness of the screen can be adjusted, allowing for easier viewing in a variety of environments.

Following proper storage protocol ensures the longevity of the drive. The operating facility that will be housing 6KE$243001X1A1 should maintain an ambient temperature between -10℃ and 50℃ (14℉ and 122℉). If the temperature is higher than 40℃ (104℉), then the ventilation covers should be removed to prevent device damage. Be sure to install the drive on a nonflammable surface as the rear cooling fins can reach potential temperatures of 90℃ (194℉). All installation instructions outlined in the corresponding manual should be followed to avoid injury or accident.
