6KE$243003X1A1

Product Description

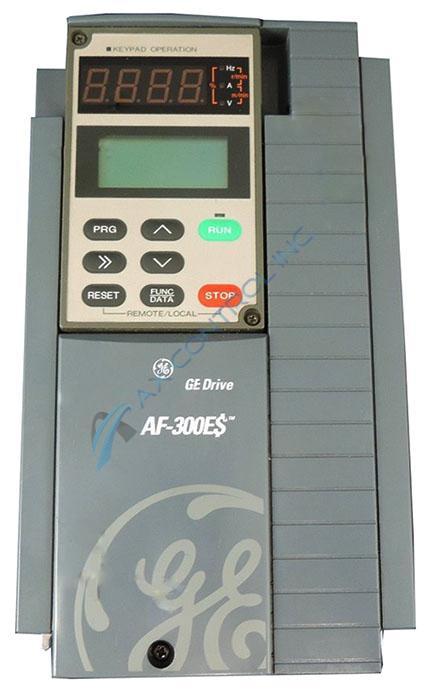

The General Electric Fuji Electric 6KE$243003X1A1 is a 3 horsepower drive. A member of the AF-300E$ series, this 3 phase drive is capable of inputting 460 Volts with a frequency of 50/60Hz. The drive can also output between 380-460 Volts with a frequency range of 0.2-400Hz. A Pulse Width Modulation (PWM) Scalar power control has been integrated into the system to offer better part performance. A factory installed keypad panel can be found mounted on the front plate of the drive.

Encased in a NEMA 1 enclosure, the drive is suitable for indoor installation in either an open or panel mounting. The drive measures 10.24in (H) x 5.91in (W) x 5.71in (D) and weighs 8.4 pounds. The front mounted keypad panel consists of a digital monitor, an LCD graphic display, and 8 dual function keys. Designed for remote operation and display, the keypad panel is easily removable by loosening the mounting screws securing it to the drive.

Keys included on the keypad include a Program Key, a Shift Key, a Function Key, a Stop Key, a Run Key, a Reset Key, and Up/Down Keys. The brightness on the LCD screen is adjustable, allowing the screen to adapt to any environment or operator.

The longevity of the device relies on proper storage and installation of the drive. The temperature of the primary facility 6KE$243003X1A1 will be operating in must range from -10℃ to 50℃, or 14℉ to 122℉. Should the temperature be expected to surpass 40℃, or 104℉, removal of the ventilation covers is necessary to prevent device damage. Be sure to follow all outlined safety precautions and installation directions found in the corresponding instruction manual.
