6KES243050X1A1

About the 6KES243050X1A1

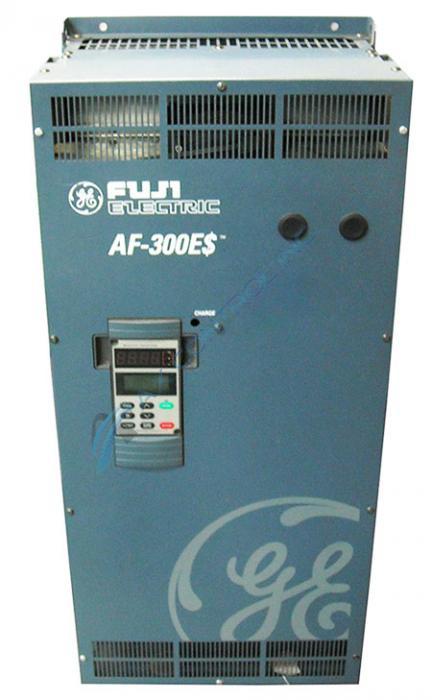

The General Electric Fuji Electric 6KE$243050X1A1 adjustable frequency drive is included in the AF-300E$ drive family. The required input voltage is 380-460V and it requires 3 phase power input. The 6KE$243050X1A1 is a 50 HP drive and a keyboard is installed at the factory. The drive is assembled with a UL Type 1 enclosure. The frequency is 50/60Hz and the frequency range is 0.2 to 400Hz.

The weight of the 6KE$243050X1A1 drive is 75 lbs. The dimensions are 33.50 in. H, 14.8 in. W, and 9.65 in. D.

The keypad provides current, output frequency, voltage, torque, synchronous speed, and line (machine speed) information. You can configure the keypad to display in English, Spanish, French or Japanese, depending on your requirements. The keypad also provides remote I/O status information and displays previous and current fault conditions.

The drive can operate for 15 millisec with 85% of full load applied, if  a momentary voltage dip condition occurs (input voltage dips below 310V).

The drive detects and records fault conditions such as overcurrent, overvoltage, undervoltage, overheating, motor overload; external fault, communication, memory, and microprocessor errors. Indication of the faults are available on the touchpad. The previous 3 faults are retained in memory.

Switch from line to inverter, slip compensation, torque limit control, restart after instantaneous power failure, multi-speed and acceleration/deceleration settings, 3-jump frequencies, pattern operation, bias frequency, and energy saving selection are some of the features provided by the drive.
