6KF11H023X1A1

About the 6KF11H023X1A1

The 6KF11H023X1A1 is an AF-300 F11 module from GE Fuji.  These drives are designed for driving 3-phase induction motors.  They are not designed for use with single-phase motors, other types of motors, or as a component for medical devices like life support systems.    The OEM is clear to state the unit is safely produced but must also be used with the proper safety precautions and with the proper safety equipment installed.  The drive should always be used with a circuit breaker or fuse, and be connected to an AC power supply matching its rated voltage.    The cover should be installed on the device before the power is turned on.

The 6KF11H023X1A1 is a 460 VAC, 15 HP, 3-phase module.  It is designed with a 40/60Hz input and is built within a NEMA 1 casing.   The unit has a rated output current of 23 amps.  Overload is rated at 25 amps for 1 minute.  The 6KF11H023X1A1 weighs approximately 13.4 pounds before the addition of any kind of packing/shipping materials.  It is 10.24 inches by 8.66 inches by 7.68 inches.

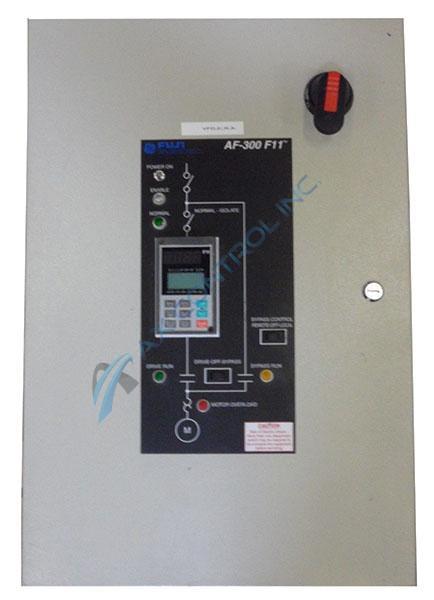

The front faceplate of the 6KF11H023X1A1 includes a keypad and an LCD screen.  The surface cover is marked with the maker’s logo.  The sides of the unit include mounting screws.  These sides are designed to allow for airflow.    The unit is designed for use within temperatures between -10 to +50 degrees Celsius.  Do not use where condensation or freezing may occur, or where the relative humidity is lower than 5% or higher than 95%.

Refer to GE Fuji manuals and data sheets for additional information.
