6KG1123F50X1B1

About the 6KG1123F50X1B1

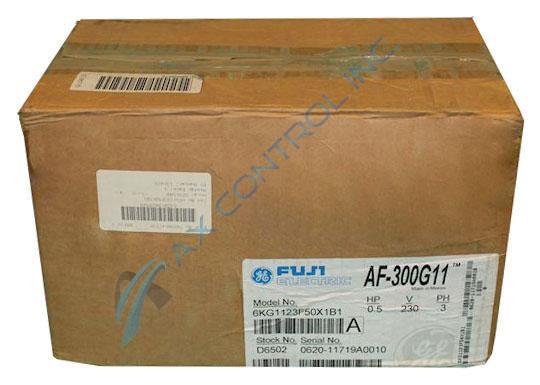

The 6KG1123F50X1B1 is a part of the AF-300 G11 series by Fuji Electric. The 6KG1123F50X1B1 is a 230 VAC, 3 phase 50/60Hz, NEMA 1, 0.5 HP drive that weighs 4.8 pounds. The rated output current (A) is three. The overload (150% for one minute) is 4.5. The rated output (KVA) is 1.1. The efficiency at 2KHz (%) is 93.5. The efficiency at 15KHz (%) is 91.7. The watts lost at 2KHz (W) is 35. The watts loss at 15KHz (W) is 45. The internal DB (W) is 10.  The main circuit terminal configuration for this drive at L1/R, L2/S, L3/T, DB, P1, P(+), N(-), U, V, W.  The input fuse L1/R, L2/S, L3/T (nominal) is five. The L1/R, L2/S, L3/T (maximum) (*1) is six. The input circuit breaker (*1) is fifteen. The tightening torque in pounds per inch (Nm) is 10.6 (1.2). The cable size AWG for the U, V, W and the L1/R, L2/S, L3/T is sixteen. The L1/R, L2/S, L3/T is the power terminals and the U, V, W, are the terminals that control the motor. The drive has a keypad that allows the worker to toggle between multiple screens such as normal operation, alarm modes, alarm history, and factors, programming, setting digital frequency, setting function data, checking function data, monitoring operating status, I/O checks, maintenance information, load rate measurement, and data copy. For additional information for this drive refer to the AF-300 G11 user’s manual. This user’s manual shows in-depth diagrams and charts in regards to this drive.
