6KG1143003X1B1

About the 6KG1143003X1B1

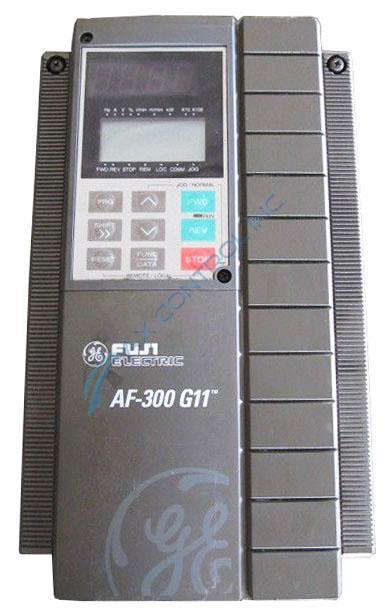

The General Electric Fuji Electric 6KG1143003X1B1 is a 3 horsepower drive that is a member of the AF-300 G11 drive series. A 3 phase drive, it inputs up to 460 Volts with a frequency of 50/60 Hz. The drive outputs 380-460 Volts with a frequency range of 0.1-400 Hz with a rated output current of 5.5 Amps. The front of the drive features a factory-installed keyboard panel.

The drive is housed in a NEMA 1/ UL Type 1 enclosure, weighing 8.4 pounds and measuring 10.24in (H) x 5.91in (W) x 5.71in (D). Loosening the two mounting screws will allow for faceplate removal. Once the front plate has been taken off, the factory-installed keyboard can be removed by loosening the other mounting screws.

Proper storage instructions should be followed to avoid both damage and accidents. Protection from moisture and condensation is necessary, as it can corrode the capacitors. Drive insulation can decrease or eliminate the amount of moisture that can penetrate the drive. The ambient temperature of the housing facility must stay between -10℃ and 50℃, or 14℉ and 122℉. Should the temperature rise above 40℃, or 104℉, then the ventilation cover needs to be removed to prevent damage to the drive.

It is important to follow all safety instructions when installing the drive. The heatsink is capable of reaching temperatures of 90℃, or 194℉. Be sure to install it away from areas with free-floating debris, as this debris poses a fire risk. Refer to the corresponding manual for proper safety and installation instructions.
