6KG1143025X1B1

About the 6KG1143025X1B1

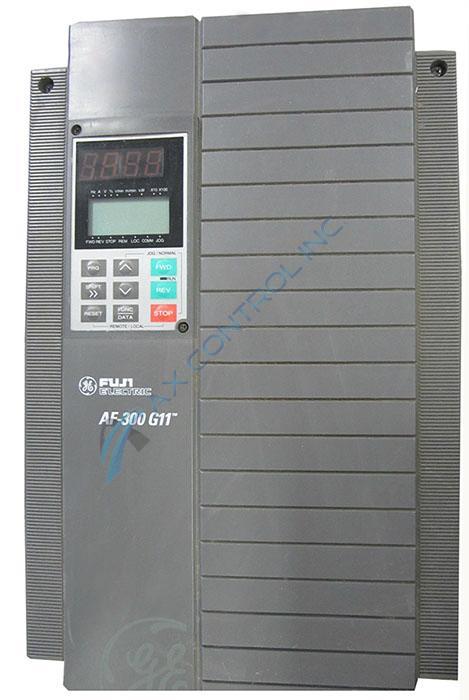

The General Electric Fuji Electric 6KG1143025X1B1 is a 25 horsepower controller that is a member of the AF-300 G11 drive family. The 3 phase drive is capable of inputting 460 Volts with a frequency of 50/60Hz. It outputs 380-460 Volts with a frequency range of 0.1-400 Hz with a rated output current of 39 Amps. A factory installed keyboard panel is mounted on the front of the drive.

The drive is enclosed in a NEMA 1/ UL Type 1 structure that measures 15.75in (H) x 9.84in (W) x 7.68in (D) and weighs 23.1 pounds. The front face plate is removable by loosening the mounting screws fastening it to the drive. The factory installed keyboard panel is removable from the unit following the removal of the front plate.

6KG1143025X1B1 must be properly stored to avoid drive damages, accidents, or fires. It is important to insulate the drive to keep moisture and condensation out of the unit to avoid corrosion. The facility the drive will be operating in should maintain a temperature between -10℃ and 50℃, or 14℉ to 122℉. If the temperature of the facility will exceed 40℃, or 104℉, then the ventilation covers located on the drive must be removed to prevent device damage.

When installing 6KG1143025X1B1, be sure to mount it in a debris free area. Floating debris is a fire hazard as the heat sink has the ability to reach temperatures of 90℃, or 194℉. The corresponding instruction manual details proper safety and installation protocol.
