6KM$223F50X4A1

About the 6KM$223F50X4A1

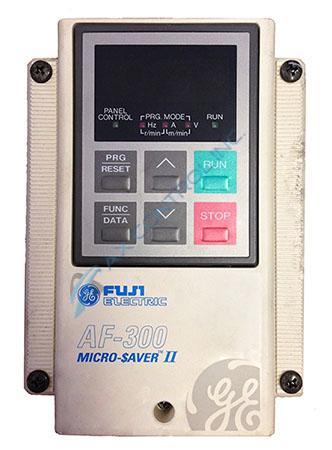

The 6KM$223F50X4A1 is a .5 HP AC Drive made by Fuji Electric. This drive is a part of the AF-300 Micro-$aver II series. The 6KM$223F50X4A1 is a 230 Volt- three-phase drive. The drive weighs 2.4 pounds or 1.1 KGS. The drive has a height of 6.22 inches or 158 mm. The width is 4.29 inches or 109 mm. The depth is 3.15 inches or 80 mm. The output current (carrier frequency) low is 1.5 and the high is 1.3. The output power is 0.20 KW. The efficiency percentage low is 87.6 and the high is 80.9. The watts lost low is 27 and the high is 45. The 6KM$223F50X4A1 is a NEMA 4 model with 3 PH inputs. The drive is suitable for outdoor or indoor use to protect the enclosed equipment against splashing water, seepage or water, falling or hose-directed water and sever external condensation. However, the drive should not come into contact with corrosive gases or oil mist. The drive has the following protective functions stall prevention, surge input, drive overheating, external faults, CPU malfunction, motor overload (electronic thermal), memory error, under voltage, overcurrent, overvoltage, short circuit for output terminals, communication error, ground fault (at start), and output wiring not connected (during auto tuning only). The drive has a four-digit LED digital display. The user’s manual created by Fuji Electric named the AF-300 Micro-$aver II, is a great reference to find more information about the drive and how to install and operate the drive.
