6KP1123002X1B1

About the 6KP1123002X1B1

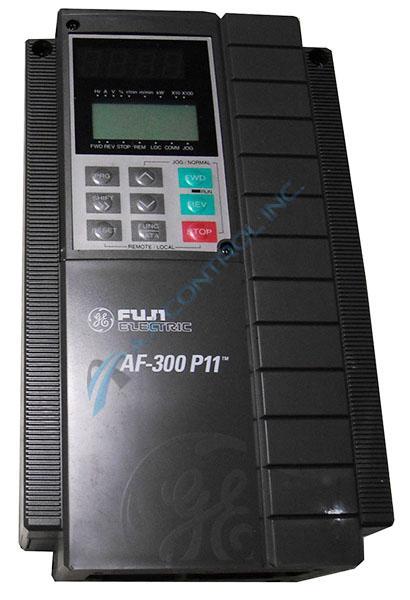

The General Electric Fuji Electric 6KP1123002X1B1 adjustable frequency drive is part of the AF-300P11 Drive Family. The 6KP1123002X1B1 drive is the second product revision in the series. The 6KP1123002X1B1 drive has a 3 phase input and an input voltage of 230V with a line frequency of 50/60 Hz. This drive has a NEMA 1 (UL Type 1) enclosure type.

The 6KP1123002X1B1 drive comes equipped with a keypad which has a 4-digit display LED monitor, used to display data such as setting frequency, output frequency, and alarm code. The drive’s keypad also had an LCD monitor attached to it, used to display various items of information such as operation status and function data. The LCD monitor also has an operating guide message, which is scrolled and displayed at the bottom of the monitor, and a backlight feature which turns on when the control power is applied or any keypad key is pressed, and stays on approximately 5 minutes after the last keystroke. There are also various physical control keys on the 6KP1123002X1B1 drive’s keypad, used for many different operations, including switching screens, data change, frequency setting, etc.

The 6KP1123002X1B1 drive has an HP rating of 2 and a Rated Output Current of 8 A. Additionally, the drive has an Overload (110% 1min.) rating of 5.5.

At 2KHz, the 6KP1123002X1B1 drive has an efficiency of 94.9% and a Watts loss of 50 W. At 15KHz, the 6KP1123002X1B1 drive has an efficiency of 94.0% and a Watts loss of 60 W.

The 6KP1123002X1B1 drive weighs 5.5 lbs. And its dimensions are 10.24 x 4.33 x 5.71.
