6KP1143005X1B1

About the 6KP1143005X1B1

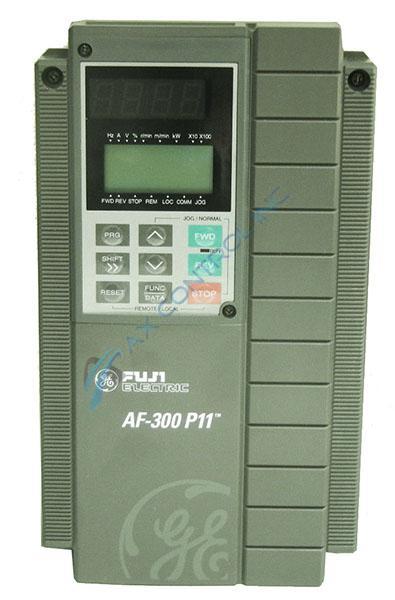

The 6KP1143005X1B1 is part of Fuji Electric’s AF-300 P11 drive series. The 6KP1143005X1B1 is a 460 VAC, 3 phase, 50/60Hz input. The weight of the drive is eight point four pounds. The horsepower rating is five horsepower. The rated output current (A) is nine. The drive has one NEMA enclose. The drive has a nine-point nine (9.9) overload with one hundred and ten percent for one minute. The dimensions for this drive in inches are 10.24 (H) x 5.91 (W) x 5.71 (D). The drive uses SINK logic, or it can use SOURCE logic (which is typically used in Europe) to connect into your existing system. The drive has six ports along the bottom. Three of these ports are connection points for the main circuit power three-phase power supply. These ports are labeled L1/R, L2/S, L3/T. The other three ports are for the inverter output terminals that connect a three-phase motor. These ports are labeled U, V, and W. There are various other terminals on the drive as well. The input terminals for auxiliary control power that connects the backup AC power supply to the control circuit are labeled RO and TO. The drive also has two DC reactor terminals labeled P1 and P(+). These allow for the option of a power correcting DC reactor. There are two terminals for DC link connection that will supply a DC link circuit voltage to an optional braking unit or an optional power regeneration unit. These are labeled P(+) and N(-).

Please contact AX Control for additional information.
