6KP1143075X9B1

About the 6KP1143075X9B1

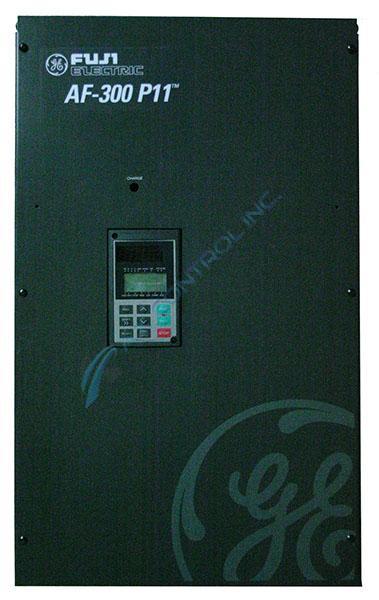

The 6KP1143075X9B1 is a drive from the Fuji Electric’s AF-300 P11 series. The drive weighs eight-six pounds and is 26.6(H) x 14.8 (W) x 10.6 (D) in inches. The drive features seventy-five horsepower, with an overload (110% 1min) of one-hundred and twenty-three, and a rated output current (A) of one-hundred and twelve. CAUTION • Do not start or stop the drive using the main circuit power. Failure may result. • Do not touch the heat sink or braking resistor because they become very hot. Burns may result. • Since the drive can reach high-speed operation easily, carefully check the performance of the motor or machine before changing any speed settings. An injury may result. • Do not use the drive braking function for mechanical holding. An injury may result. • Use 60/75 °C CU wire only. • Solid state motor overload protection is provided in each model. • Field wiring connection must be made by a UL Listed and CSA Certified closed-loop terminal connector sized for the wire gauge involved. The connector must be fixed using the crimp tool specified by the connector manufacturer. • Never modify the product. Electric shock or injury may result. Conformity to Low Voltage Directive in Europe • The contact capacity of alarm output for any fault (30A, B, C) and relay signal output (Y5A, Y5C) is 0.5A at 48V DC, 0.3A ≤ 250 VAC. • Use only a molded-case circuit breaker (MCCB) or magnetic contactor (MC) that conform to EN or IEC standards. Refer to the AF-300 P11 manual for additional information.
