6KP1143F50X1B1

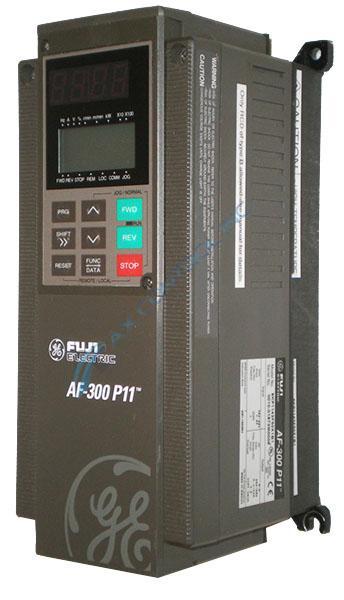

About the 6KP1143F50X1B1

This device is a part of the AF-300 P11 series. The part number is 6KP1143F50X1B1. The operating location for this device is indoors. The ambient temperature for this device is negative ten to positive fifty degrees Celsius or positive fourteen to positive one hundred- and twenty-two-degrees Fahrenheit. This is for a product with thirty HP or less, and the ventilating covers must be removed if the ambient temperature exceeds positive forty degrees Celsius or one hundred- and four-degrees Fahrenheit. The atmosphere for the device must be out of direct sunlight and free of dust, corrosive gasses, oil mist, vapor or water, and also must have a minimum salt content in the air. To install this device fasten it in an upright position with the AF-300 P11 facing the front. Consider where the device is placed and if it will receive proper ventilation to keep the ambient temperature within range. Only connect the power to the L1/R, L2/S, L3/T main circuit terminals. If the power is connected to another terminal not previously listed, it will cause damage to the drive. Make sure to wire the ground terminal to the ground to prevent issues such as electric shock or fire and to assist in minimizing noise. The AF-300 P11 user’s guide goes into great detail with charts and diagrams that explain insulation, programming the device for your system, ways to troubleshoot issues, along with detailed specifications about the device.

If you would like more information please call or email the staff at AX Control.
