6KXC123002X9A1

About the 6KXC123002X9A1

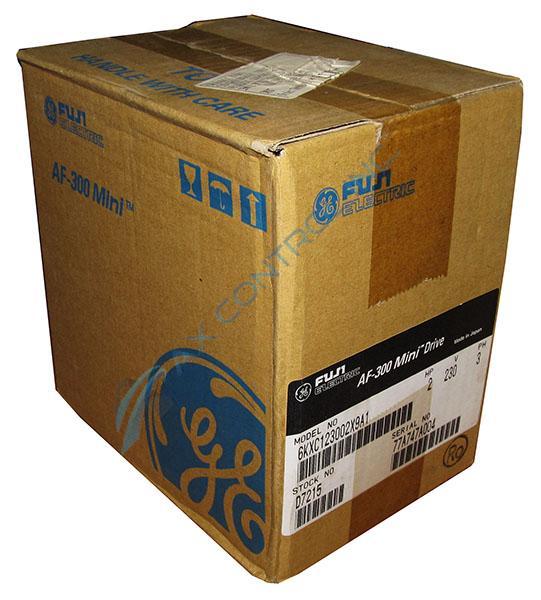

The 6KXC123002X9A1 is an AF-300Mini drive from General Electric/Fuji.  This part number corresponds to Fuji’s FRN1.5C1S-2.  The 6KXC123002X9A1 is a 2 HP three-phase 230 VAC drive enclosed in an IP20 rated enclosure.  This unit is designed with a keypad.

The 6KXC123002X9A1 is designed for 3-phase induction motor control.  It should not be used for other applications such as for single-phase motors.    The unit should be mounted on a nonflammable base like metal away from flammable materials.   The unit should be wired using a ground fault circuit interrupter and specified wiring.   The drive should not be modified from its original form.

The  6KXC123002X9A1 is 5.12 inches high by 4.33 inches wide by 5.47 inches deep.  It weighs approximately 3.7 pounds before the addition of packing material.   The unit has a rated output current of 8 amps.   The unit is designed to be used indoors in areas where the relative humidity is between 5 and 95% and the ambient temperature is -10 to +50 degrees Celsius.

Wiring for the  6KXC123002X9A1 attaches to the terminal block located behind the terminal block covers.  These are easily removable without tools.   The screw size is M 4 and the tightening torque required is 15.9 lb-inch.  The ground wire should always be connected; this is to prevent fire or electric shock and to reduce electrical noise.

Additional information regarding the  6KXC123002X9A1 can be found using data sheets and manuals originally published by General Electric.  If you no longer have copies of these publications, AX Control may be able to help with duplicates along with your order.
