6KXC123F50X9A1

About the 6KXC123F50X9A1

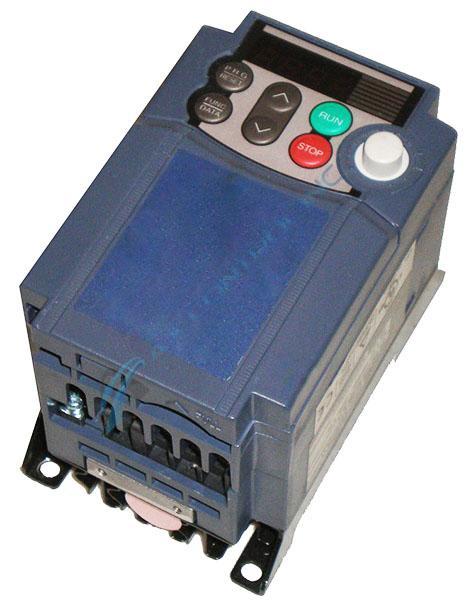

The 6KXC123F50X9A1 is a part of the AF-300 Mini series manufactured by Fuji Electric. When carrying the drive, always support its bottom at the front and rear sides with both hands. Do not hold only by the cover or other parts, since they may detach and allow the drive to drop and break. Avoid applying force to the terminal block covers, which are made of plastic and may break easily.

Precautions for temporary storage (1) Do not place the drive directly on the floor. (2) If the storage environment does not meet the specified requirements, wrap the drive in an airtight vinyl sheet or similar for storage. (3) If there is a possibility that the drive will be exposed to high humidity, add a drying agent (such as silica gel) in the airtight package described in item (2). For Long-term storage, the long-term storage method for the drive varies according to the environment of the storage site. General storage methods are described below. (1)

The storage site must satisfy the requirements specified for temporary storage. However, for storage exceeding three months, the ambient temperature should be within the range of -10 to 30°C (14 to 86˚F). This is to prevent electrolytic capacitors in the drive from deterioration. (2) The package must be airtight to protect the drive from moisture. Add a drying agent inside the package to maintain the relative humidity inside the package at less than 70%. (3) If the drive has been installed to the equipment or control board at construction sites where it may be subjected to humidity, dust, or dirt, then remove the drive and store it in a suitable environment.

The 6KXC123F50X9A1is a Fuji AF 300 Mini component.  Please refer to AF 300 Mini manuals for additional information.
