6KXC143001X9A1

About the 6KXC143001X9A1

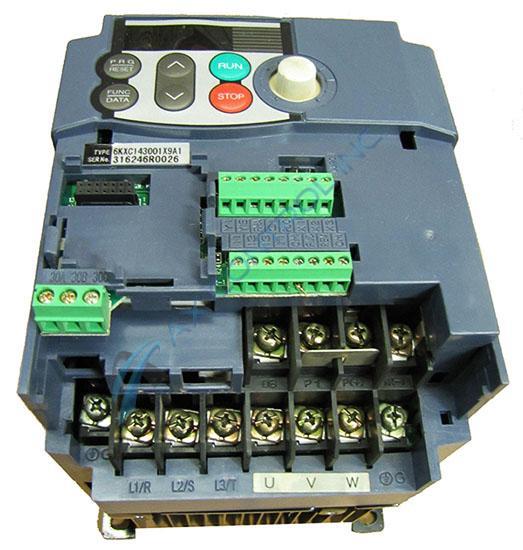

The 6KXC143001X9A1 is a part of the AF-300 Mini by Fuji Electric. This drive is a 460 VAC, 3 phase, 50/60 Hz input. The enclosure is labeled IP20. The rated output current (A) is 2.5, with an overload (150%) 3.8. This drive weighs 2.6 pounds. The dimensions of this drive are 5.12 (H) x 4.33 (W) x 5.47 (D) in inches. The face of the device has a four-digit, 7-segment LED monitor which displays the running status, alarm status, and data settings of the drive based on the operation mode. There is a RUN button that starts the drive's motor. A STOP button to stop the drive's motor. A potentiometer (white dial) which is used to manually set frequencies. There are UP/DOWN keys that are used to change the function data displayed on the LED monitor or to select setting items. There is a program/reset key that is used to switch between the two operating functions. There is also a function/data key. Pressing this key in RUN mode switches the information displayed (output frequency (Hz), current (Amps) or voltage (V)). Pressing this key in the program mode displays the function codes and sets the data entered using the up and down arrows or the potentiometer. Please refer to the AF-300 Mini instructional manual produced by Fuji Electric that will go into details such as specification about this drive, how to install the drive, how to restart after an instantaneous power failure.
