6VAF343007B-A2

About the 6VAF343007B-A2

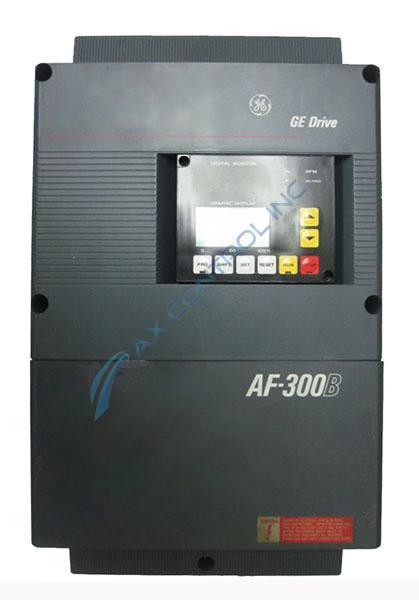

The AF-300B Drive is part of General Electric's AF-300 drive family. The system is only meant for inside use and ambient temperatures of -10 to 50 degrees Celsius. The drive comes with an enclosed cooling system with an external fan. The drive weighs about 20 pounds and 16.6 Kilograms. The drive has a 8 button keypad interface that assists the user in controlling the system. There are two display systems that show system information. The drive's digital monitor is a 4-digit numerical display that shows values. The graphic display shows the current functions of the drive. It also allows you to interface with the device in more effective ways. The device comes with a button to add brightness to the screen when less natural light is available. This system also uses a Vector Dispersion PWM Control as its control system.

The drive runs at 7.5 Hp and has a rated output of 13 amps. When the drive is in overload the amperage maxes out at 150% the normal amperage for the length of a minute. The output frequency of the drive is from .2-120Hz. The drive has an inductance of 950uH and a KVA of 10.4.

The AF-300B Drive has 3 input phases that help the common operations of the device. The drive runs a 460V and 50/60Hz. The voltage can fluctuate from -15 from the average and +10 from the average. There is an option to enable speed switching. This option is available through a built-in 8-step process.
