FVRF50-C9S

About the FVRF50-C9S

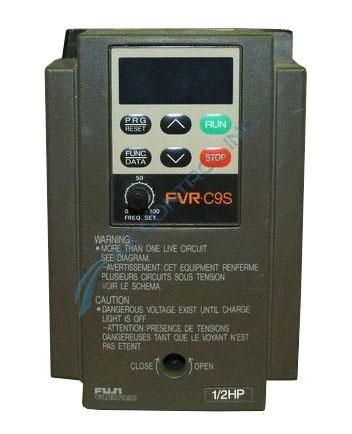

The Fuji Electric Drive is part of General Electric's FVR-C9S-7UX  drive family. The drive has an IP20 enclosure that protects from fingers and objects that are larger than 12mm. This IP20 enclosure makes this drive only available for inside use. The dimensions of the drive are 6.69 x 3.35 x 1.38 which is a manageable size for any space. To make it more manageable, the Fuji Electric Drive also comes with the ability to mount anywhere needed. This drive can handle any ambient temperature between -10 and 65 degrees Celsius. If cooling factors into the decision, this drive is self cooled instead of forced cooled. This drive also gives you the ability to set up the speed up and slow down of the device independently. The 3-digit display is useful in telling the user outputs and alarm codes that affect the system. There is also a 6-button keypad and frequency tuner that help the user give exact commands to the system.

This Fuji Electric Drive runs at 1/2 horsepower and has a 3 phase output. The system puts those phases to work with an output capacity of .87KVA. The device has a output rating of 2.1 amps and can overload to 150% amperage. The base frequency of the product fluctuates between 50 and 120Hz.

This Fuji Electric Drive has 1 input phase that aids its processes. The drive has an input voltage of 240VAC 50/60Hz. The input phase of the drive gives it an input capacity of 1KVA.

We may have datasheets and manuals available for this product that will help with technical questions like how to factory reset your fuji drive.
