IC210DAR010

About the IC210DAR010

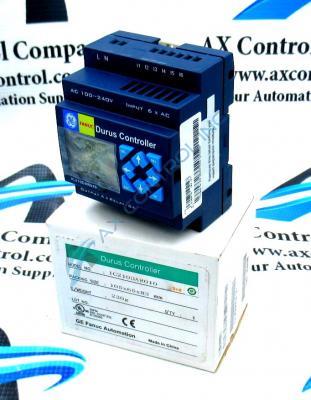

IC210DAR010 is a Durus-10 controller that is manufactured by GE Fanuc Automation. This controller has a 10 point AC Power Source that is 85-265 VAC and 85-265 VDC. The specifications are 6 AC in/4 out (Relay 8 Amp), and the controller is expandable and includes an LCD screen and keypad.

Up to 3 discrete expansion and one analog expansion unit are supported by Durus controllers. There are many environmental specifications for Durus controllers. This controller must operate between 0-55 degrees celsius and must be stored between -40 and 70 degrees celsius. The operation humidity must not drop below 20% or rise above 90% relative humidity. There can be no frost or corrosive gas. The vibration resistance is 0.075 mm amplitude and 1.0 g acceleration. The impact resistance peaks at 15 grams and 11 ms in duration. This controller can be mounted in any orientation via panel-mount or DIN rail installation.

10 point controllers such as IC210DAR010 weigh 230 grams. 8 point expansion units weigh 190 grams. The size of the cable is AWG 12, which is 3.5 mm2. The dimensions of the controller on the DIN rail are 72 x 90 x 59.6 mm, and the dimensions of the controller after direct installation are 72 x 106 x 59.6 mm. The LCD display supports 4 lines and 12 characters. The programing storage media is Flash.

The module includes power supply terminals, an LCD display, input terminals, retractable mounting feet, a delete key, a select key, arrow keys, an OK key, an escape key, a communications port, and output terminals.
