IC210DDR012

About the IC210DDR012

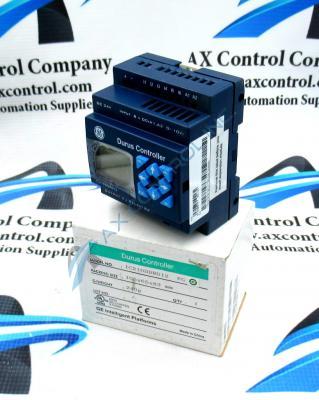

In the GE Fanuc Automation series of Durus-12 controllers, IC210DDR012 is one offered part. 1 KHz input is required for motion in this controller. As a 12 point drive controller, this part has the specifications (6) 24VDC input and (4) output with a relay of 8 amperes. The power source is 24VDC, and there are 2 analog inputs.

The module of the controller includes output terminals, power supply terminals, a communications port for computers or the memory option module, an escape key, an LCD display, input terminals, a delete key, a select key, arrow keys, an OK key, and retractable mounting feet.

There are more operations that can be performed in Stop mode than in Run mode. Use the up and down arrow keys to navigate the main menu and press OK to confirm a selection. Use the escape key to go back to the main menu. In Ladder (Stop) mode, the menu displays the following options: Ladder, Fun. Block, Run, Clear Prog., Write, Read, Set, RTC Set, Analog Set, Password, Language, Initial. Clear Program clears all passwords from the program. Function Block allows the user to edit timers, counters, analog compare functions, and other function blocks.

From the main menu screen, use the select and arrow keys to display the point states, which include Analog Input Values, G Table States (analog comparator), R Table States (RTC), C Table States (Counter), T Table States (Timer), M Table States (Auxiliary coil), and RTC in Year, Month, Date Format. The user may also view expansion inputs and outputs on IC210DDR012.
