IC210EAI004

About the IC210EAI004

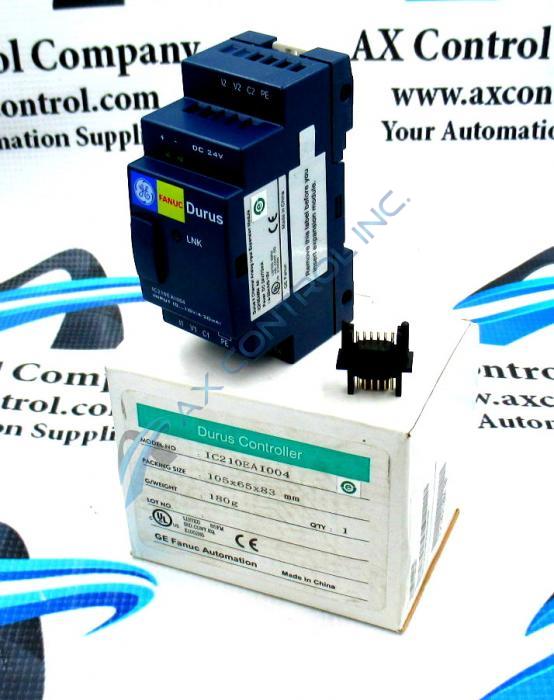

The IC210EAI004 module was developed and manufactured by GE Fanuc Automation. The IC210EAI004 module was made to be part of the Durus series of controllers and controller accessories. It is classified as one of the analog expansion modules that are compatible with the Durus controllers, an I/O Expansion Option Module. Please note that only one analog expansion module is supported on any individual Durus controller at one time.

The Durus controllers are large, rectangle-shaped devices. At the top, you will find four input ports that are labeled “X1,” “X2,” “X3,” and “X4.” Below this on the next row, you will find two terminals that are rated at DC 24V: One positive and one negative. The middle of the device has a large indicator light that is labeled as “RUN.” The output ports lie on the bottom of the device, and those are labeled as “Y1,” “Y2,” “Y3,” and “Y4.”

The features that makes the IC210EAI004 module different from the other Durus controller expansion modules is the fact that it has a 24 VDC power source and is rated at 4 analog input voltage or current channels. The IC210EAI004 module’s lifecycle status is classified as mature. The analog input range is rated at 0 to 10 VDC or 0 to 20 mA. The IC210EAI004 module’s resolution is 12 bits; compare this to the resolution of the IC210EPT004, which is rated at 0.1C. The IC210EAI004 module’s temperature range is -100 degrees celsius to 600 degrees celsius and the module has the following dimensions in millimeters (W x H x D): 38 mm x 90 mm x 58 mm.

The IC210EAI004 analog expansion unit has an approximate weight of 0.34 lbs. or 0.15 kg.
