IC210MDR124

About the IC210MDR124

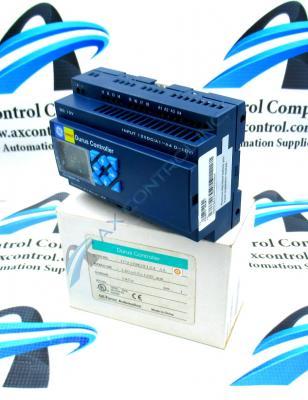

IC210MDR124 is a Durus-24 DC plus controller. It is manufactured by GE Fanuc Automation. This 24 point controller has a 12 VDC power source and 12 VDC input. The relay output is 8 amperes. An RS-485 2-wire serial port and Modbus Slave communications are both built in to the controller. The 4 analog inputs on this device can be configured as DC input points. The power supply power consumption is 90 mAmps. The output control voltage is 250 VAC/30 VDC relay outputs with an 8A resistive/isolated load. The analog input range is 0 to 10 VDC and the analog resolution is 10 bits.

This controller is expandable and comes complete with an LCD screen and a keypad. The LCD display has 4 lines and 12 characters. The dimensions of the device are 126 mm x 90 mm x 58 mm. Expansion is possible with DeviceNet Slave and/or Profibus Slave expansion modules. The user program logic memory is 200 rungs and 99 blocks. The isolated relay output is 8 amperes. This controller requires 12 VDC input power. The input current is 0.63 mA at 24 VDC.

The module includes input terminals, output terminals, retractable mounting feet, an LCD display, a communications port, power supply terminals, an OK key, an ESCape key, a DELete key, a SELect key, and arrow keys for navigation. IC210MDR124 can be mounted on a panel or on a DIN rail. Do not mount the controller on a horizontal surface; only mount horizontally on the DIN rail.
