IC210NDR024

About the IC210NDR024

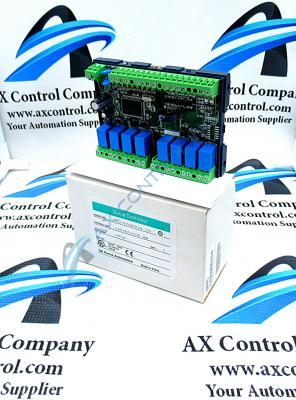

In the Durus-24 series of GE Fanuc Automation controllers, IC210NDR024 is a mature Durus Plus DC controller. This particular model has no cover, LCD display, or keypad. This is not an expandable unit. There is no PWM maximum output frequency. The physical I/O maximum is 44 and the user program logic memory is 200 rungs and 99 blocks. The power supply power consumption is 90 mAmps. Programming software version 3.0 or higher is required to run this controller. Analog inputs can be configured as either discrete inputs or analog inputs.

This 20 point controller has 4 analog inputs, 8 isolated relay outputs (8 amperes), and 8 24 VDC inputs. 1KHz is the high speed frequency. Keep the output power below 30 VDC. Do not allow the controller to come into contact with corrosive gases. The relative humidity must stay between 5 and 90%, and there can be no frost in or on the controller. The ambient temperature must remain above 0° Celsius. Do not place the controller in an environment with consistent vibration and impact. For greater resistance to shock and vibrations, panel mount the controller. In conditions where shock and vibrations are not a concern, the controller may be mounted horizontally on the DIN rail. The device will not operate in conditions that do not meet the aforementioned specifications. Refer to the manual for further instructions on equipment conditions. Do not ignore caution warnings. Failure to follow warnings may result in personal harm and/or damage to the equipment.
