IC300DIQ711

About the IC300DIQ711

An IC300DIQ711 is a GE Fanuc created Mixed DC I/O Module. It is not being maintained by GE anymore and may be difficult to find. AX Control does endeavor to keep this part in stock. Please refer to our website for its availability.

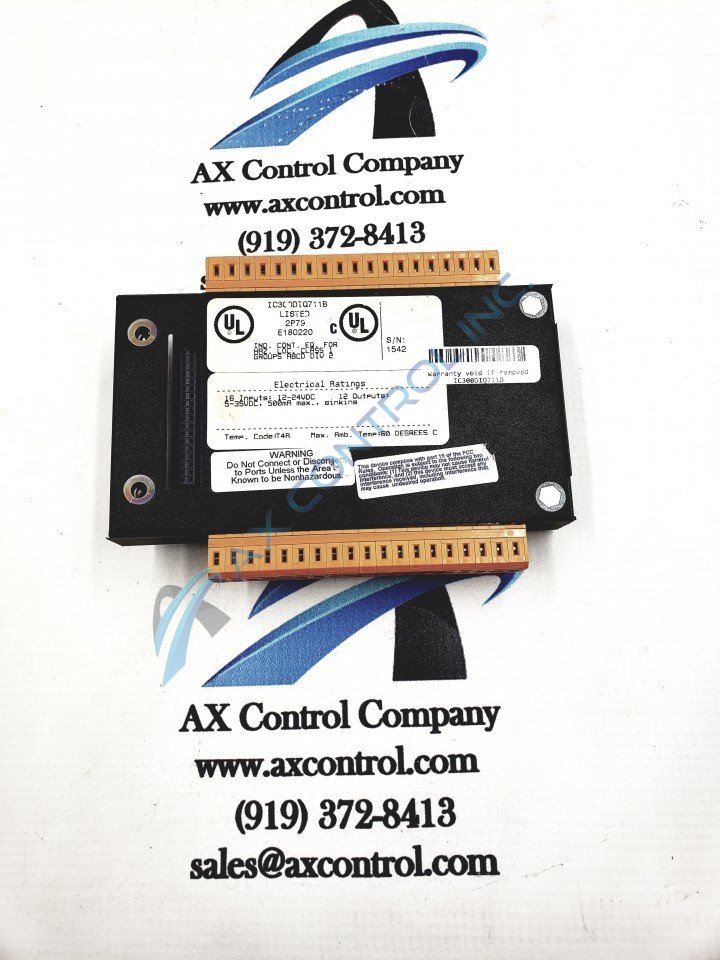

The IC300DIQ711 is a SmartStack Digital Combo Module. This module has 16 DC Inputs and 12 DC Outputs. It is not compatible with the IC300RCS210 OCS. This module has a negligible inrush power requirement but does have a steady-state power requirement of 1.18 watt (49.5 mA @24 VDC.) This device has a terminal that has a spring clamp and is removable. It is suggested that you operate this module between the temperatures of 0-60 degrees Celsius. It weighs roughly 256 grams.

The inputs are 16 channel with a maximum voltage range of 12/24 VDC that have positive and negative logic. The inputs have 3 commons per module. They have a peak voltage of 35VDC and a channel to bus isolation of 500VDC. It has a 10k Ohms input impedance.

The outputs are 12 channel with an operating voltage of 5-35 VDCs that has negative logic. They have a max peak voltage of 35 VDC. They have current-sinking with a 10k pull-up. The outputs have a 1.5 VDC max on voltage level and a max load current of 0.5 mA per channel. The outputs have short circuit protection. They have a 600mA max inrush current per channel. They do not possess a minimum load and they have a 1msec off-on/on-off response time.
