IC300DIQ716

About the IC300DIQ716

The IC300DIQ716 is a GE Fanuc designed PLC Module. It is no longer being supported by GE and might be a little hard to find. AX Control does attempt to keep this part in stock as either a refurbished or new surplus part.

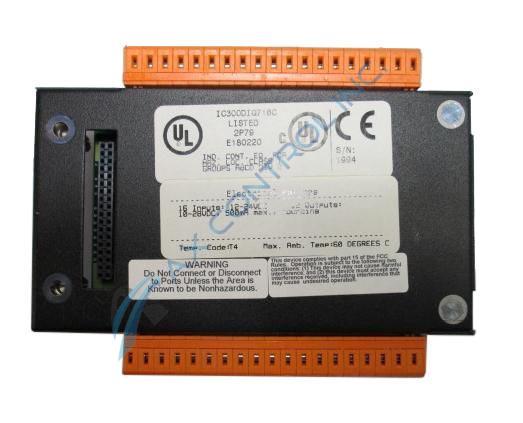

The IC300DIQ716 is a SmartStack Digital I/O Combo Module. It is a mixed DC I/O. It has 16 channel 12/24 VDC isolated inputs with positive and negative logic. It also has 12 channel 10-28VDC sourcing outputs that have positive logic. This module has a negligible required inrush power. It has a spring-clamp terminal that can be removed. It weighs roughly 256 grams. It should only be operated in a temperature range of 0-60 degrees Celsius and a non-condensing relative humidity of 5-95%.

There are 16 inputs per module and 3 commons per module. They have a voltage range of 12-24 VDC and a peak voltage of 500 VDC. There is a minimum ON-input voltage level for the inputs of 9VDC/1 mA. There is an OFF-input voltage level of 3VDC. These inputs have bidirectional characteristics and an impedance of 10K Ohms. They have an off-on/on-off response time of 1msec.

The IC300DIQ716 has a total of 12 outputs and 1 output common per module. The outputs are considered to be sourcing and have a 10k pull-down. They have an operating voltage of 10-28 VDC. They have a max peak voltage of 28VDC. They have a minimum inrush current of 650 mA and do not have a minimum load.
