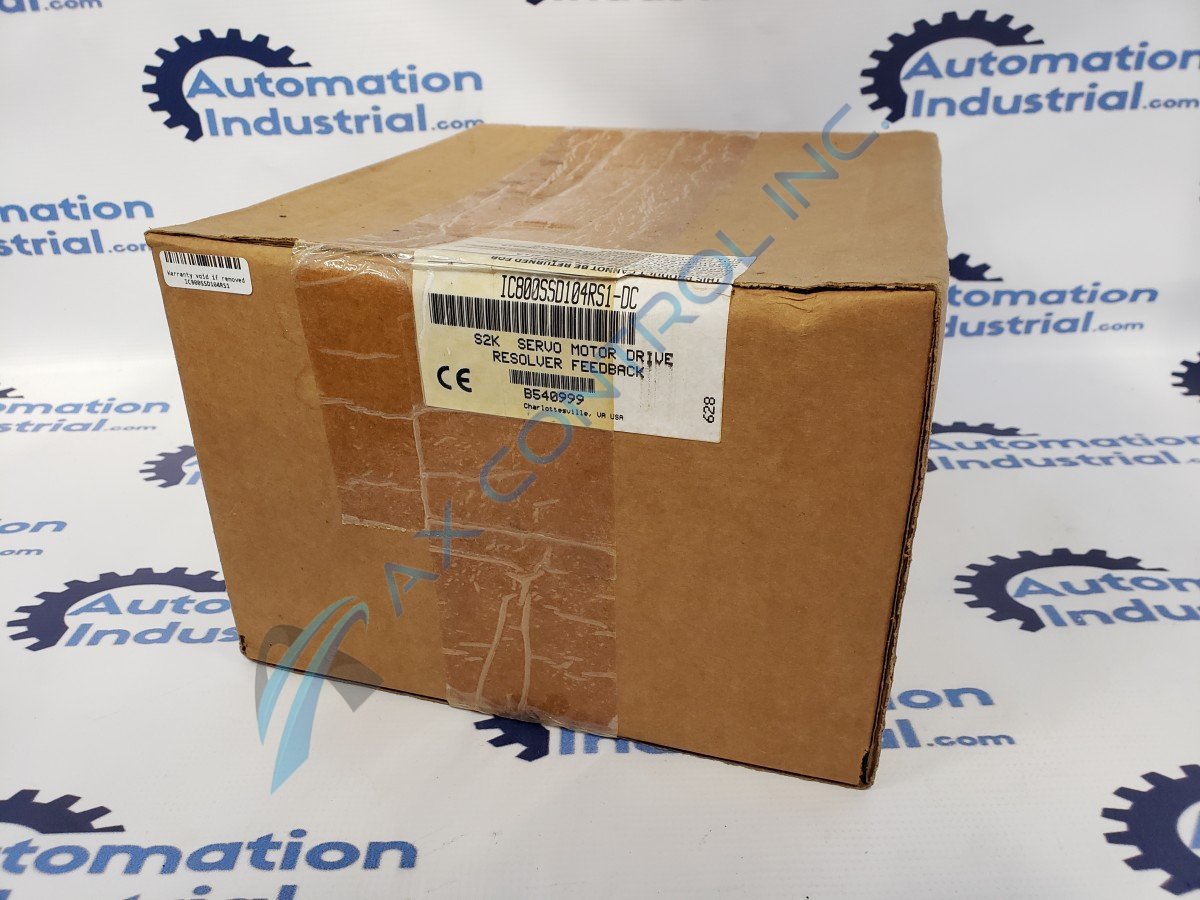

IC800SSD104RS1 Image One
2 year warranty

IC800SSD104RS1 Image 1
S2K Servo Drive for MTR Series Motor - Wiring Diagram Image

IC800SSD104RS1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
S2K Servo Drive for MTR Series Motor

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IC800SSD104RS1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IC800SSD104RS1
  • SKU: IC800SSD104RS1GFP
  • Manufacturer: GE Fanuc PLC
  • Series: Servo & Amplifiers

Product Description

As part of the larger VersaMotion series by GE Fanuc Automation, IC800SSD104RS1 is an S2K series Servo amplifier with resolver feedback. This amplifier is 4.3 amperes and 115/230 VAC 52 K. It is applicable to the following controllers: IC800SSI104RSI, IC800SSI104RD2, and IC800SSI104RP2. This device has an extended I/O and requires an S-Series Servo motor.

This amplifier includes a two-character diagnostic LED, robust power blocks, a command signal, torque limit analog inputs, user configurable quadrature encoder output, serial encoder feedback from S-Series Servo motors, sinusoidal commutation for smooth velocity and minimum torque ripple, pulse and direction, quadrature encoder or cw/ccw pulse input format for position control mode, and AC power input and motor connections on the bottom of unit to isolate electrical noise. The weight is 3.6 lbs and the dimensions are 6.05 in (depth) x 3.20 in (width) x 8.50 in (height). The position feedback connector depth is 1.26 in. The operating range is plus or minus 10 VDC, the resolution is 12 bits, the output current is 5 mA, the input voltage range is +5 to +15 VDC, and the line count frequency is 3 MHz max. The pulse frequency is 12 MHz max with a 4x multiplier, and the output voltage is +5 VDC.

For the analog output on IC800SSD104RS1, the operating range is plus or minus 10 VDC, the resolution is 8 bits, and the output current is 5 mA. The operating temperature free air ambient must be 0 to 50° C and the storage and shipping temperature must be -40 to 80° C. The enclosure is an open type. This amplifier must be mounted in the vertical orientation to allow for circulation through the heat sink. There is one RS-232 serial communication multipurpose programming port available on the amplifier. The maximum distance of RS-232 is 50 feet, and the communication rate is 9,600 baud.

  • IC800SSD104RS1-AA
  • IC800SSD104RS1-BB
  • IC800SSD104RS1A
  • IC800SSD104RS1B

Repair Services For IC800SSD104RS1

Type Lead Time Price Action
Repair Service 1-2 weeks $1305

Our highly skilled technicians can repair your IC800SSD104RS1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

IC800SSD104RS1 Manuals, White Papers, Data Sheets, and Troubleshooting
