About the IC800SSI216RD2

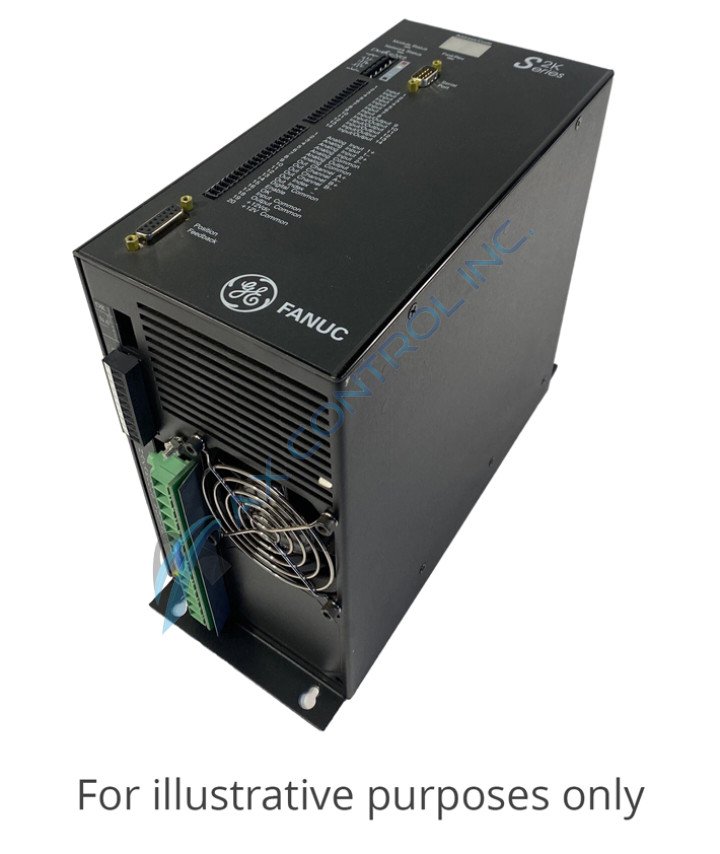

The IC800SSI216RD2 is a GE FANUC VersaMotion Servo Motor Controller. This controller is a 180-250 VAC device with a 3-phase input. It supports DeviceNet programming. The controller has position feedback, a serial port, along with eight discrete inputs and outputs. The device’s front panel also displays module status, network status, address/code, and Fwd/reverse. The two-character LED display allows real-time diagnostic updates using mnemonic displays like “OK,” OV” (for motor over voltage,) LE (for Lost enable,) etc.
The IC800SSI216RD2 is designed to be used with a specific series of motors. This includes MTR-3S45-H, MTR-3S46H, MTR-3S63-G, MTR-3S65-G, MTR-3S67-G, MTR-3T45-1, MTR-3T54-H, and MTR-3T55-H. These motors range from 32 to 150.3 in-lb of continuous stall torque with rated speeds from 1,400 to 5,300 RPM. Please consult GE data sheets for specific information.
Over a decade ago, GE Fanuc incorporated Whedco Inc. IMJ models into the S2K series. If you are replacing one of these controllers, please note the IC800SSI216RD2 is compatible to a IMJ-31GD-2-D Servo Motor Controller, 16A Resolver Feedback with DeviceNet.
The IC800SSI216RD2 has an operating temperature of 0 to 50 degrees Celsius. Its storage and shipping temperatures are -40 to 80 degrees Celsius, with humidity of 5 to 95% non-condensing. The heat sink orientation must be vertical. Please note this unit is rated for operation to 3,300 feet; higher altitude operation should not occur before consulting with GE. The module is designed for installation with a clearance of 3 inches on all sides for effective cooling.
Please refer to manuals or data sheets originally provided by GE for more information regarding the installation, operation, or handling of the IC800SSI216RD2. General Electric was responsible for all original technical support for this product.
