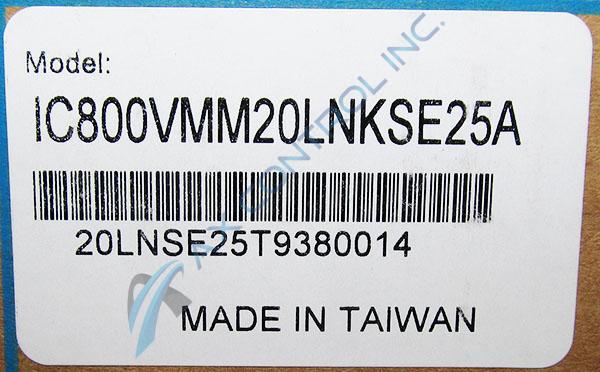

About the IC800VMM20LNKSE25
IC800VMM20LNKSE25 is a VersaMotion servo motor that is manufactured by GE Fanuc Automation. This motor does not have a brake.
A user can identify the motor specifications by the part number. “IC800VMM” indicates that the part is a VersaMotion Motor. The next 2 numbers signify the power rating, wherein “01” is 100 watts, “02” is 200 watts, “04” is 400 watts, “07” is 750 watts, “10” is 1000 watts, “20” is 2000 watts, and “30” is 3000 watts. The “L” that follows indicates that the brake is low inertia. The letter is either “N” (no brake) or “B” (24 VDC holding brake). The next 2 letters, “KS” indicates that the shaft configuration is straight, with a key and an oil seal. The last piece of the part number, “E25”, signifies a 2500 PPR encoder feedback.
This motor has a rated output power of 2000 watts, a rated torque of 9.55 nm, and a 28.65 nm maximum torque. The rated speed is 2000 rpm and the maximum speed is 3000 rpm. The rated current is 11.22 amperes and the maximum current is 33.66 amperes. The rotor moment of inertia without a break is 34.68E-3. The mechanical time constant without a brake is 1.62 ms, the torque constant is 0.85 n.m/A, and the voltage constant is 94.2/31.4 mV/rpm. The armature resistance is 0.119 ohm, the armature inductance is 2.84 mH, and the electrical time constant is 23.87 ms. The weight is 6.2 kg without a brake.
