About the IC220ALG220

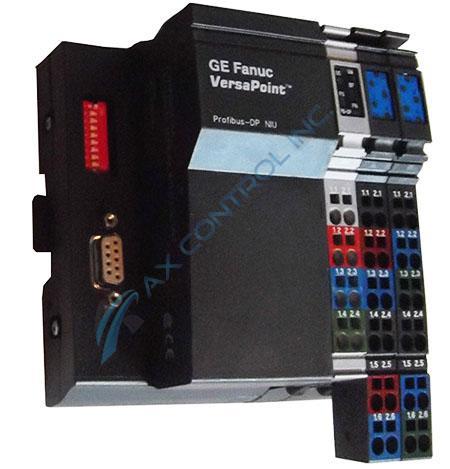

IC220ALG220 is an Analog Input Module that is part of the VersaMotion system by GE Fanuc Automation. This module has 2 current channels and an active lifecycle status. The input voltage is 0-20 mA, 2-20 mA, plus or minus 20 mA, 0-10 volts, and plus or minus 10 volts. There are 2 points of input. The connection is a 2 wire, shielded sensor cable connection. The converter requires 120 micro seconds, and the module update rate is less than 1.5 micro seconds. The input resistance is greater than 220 kohn (voltage) and 50 ohm (current). The limit frequency of the input filter is 40 Hz. The current consumption for Local Bus UL is 45 mA (typical).
This module has a Bus Diagnostics LED indicator. The required terminal strip is IC220TBK062 (contains 5 strips. Analog input modules receive signals from current and voltage input devices. Specialty modules are available for RTD and Thermocouple inputs. This unit is part of the remote cabinet set. There are 5 IC220ALG220’s in each remote cabinet, and there are 5 remote cabinets in the control cabinet. The maximum cable length for this unit is 250 m. The datasheet for this Analog Input Module is GFK-1906. This unis has a UL current consumption of 88 mA and a UANA current consumption of 15 mA.
The housing dimensions are 12.2 mm (width) x 120 mm (height) x 71.5 mm (depth). The power for sensors requires an external power supply. The operating temperature must remain between -25 degrees celsius and 55 degrees celsius. The storage temperature must remain between -25 degrees celcius and 85 degrees celsius. The operating humidity must average 75% and must not rise above 85%. The degree of protection is IP 20 according to IEC 60529. This module has a class 3 class of protection according to VDE 0106 and IEC 60536. The total power consumption is typically approximately 0.63W.
