About the IC220ALG321

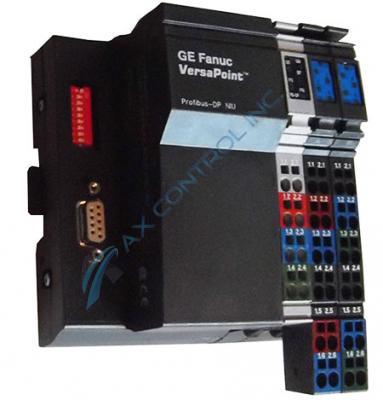

The VersaPoint system includes IC220ALG321, an Analog Output Module manufactured by GE Fanuc Automation. This module has an active lifecycle status and a 16 bit voltage analog output with a 1 channel current. The connection style is a 2-wire shielded sensor cable, the output voltage is 0-10 V, and there is one output point. The module update rate is less than 1 msec, the output load is 2kohm minimum, and there is no nominal current consumption of US. There is a BUS diagnostics LED indicators. The current consumption for Local Bus UL is 30 mA typical and 40 mA maximum.
The required terminal strip is IC220TBK061, and it contains 5 strips. The maximum cable length is 250 meters. This module has immunity to short-circuiting of analog voltage output, but it does not have immunity to short-circuiting of analog current output. The datasheet number for this module is GFK-1908 and the module ID is 7D hex (125 decimal). The housing dimensions are 0.49 in x 4.8 in x 2.86 in. The operating humidity must average 75%, but it can occasionally reach 85%. Take appropriate measures against increasing humidity.
The total power consumption is approximately 0.59 watts. This module features an actuator connection and an IP 20 rated degree of protection. One I/O terminal strip is required for this module to function. A separate main circuit should be used for analog modules in order to keep the current flowing through the power busses of the analog modules as low as possible. Do not operate the module without knowledge of the associated electrical risks.
