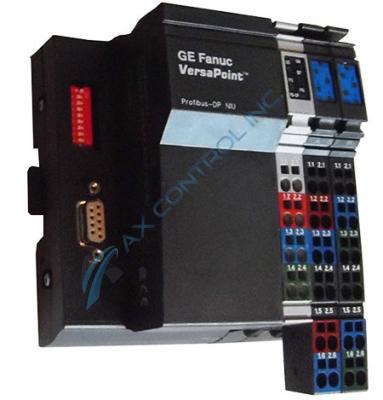

About the IC220MDL641
GE Fanuc Automation manufactures IC220MDL641, a VersaPoint Discrete Input Module. Discrete input modules receive signals from input devices such as sensors, pushbuttons, and switches that can have two states: on or off, open or closed. The lifecycle status of this module is active. The input voltage is 0-30 VDC, and there are 2 logic points. The connection style is 2, 3, and 4 wire. The input response time is less than 1 msec. The ON state current is 5 mA, and the OFF state current is 0.4 mA. The current consumption for Local Bus UL is 35 mA.
0.5 amperes is the maximum nominal current consumption of US on this DIM. The LED indicator is the Bus Diagnostics Status indication of inputs. The required terminal strip is IC220TBK082, which contains 10 strips. In the event of high simultaneity of digital outputs and maximum current load on the main circuit, insert a power terminal after the IC220MDL754 terminal. The datasheet number for this module is GFK-1901, and the module ID is BE hex (190 decimal). The current consumption of UL is 35 mA and the current consumption of US Channel/module is 250 mA/500 mA. If the current load limit is reached at US or UM, a new Power Terminal must be inserted. The segment supply voltage US is 24 VDC, which is a nominal value. The housing dimensions of this unit are 12.2 mm (width) x 120 mm (height) x 71.5 mm (depth).
This module includes connections for two digital sensors, as well as diagnostic and status indicators. One I/O Terminal Strip, IC220TBK082, is required and must be ordered separately. The degree of protection is IP20 according to IEC 60529. The storage temperature must remain between -13° F and 185° F. The operating temperature must remain between -13° F and 131° F. Storage and operation humidity must remain non-condensing and never slip below 5%.
