About the IC220MDL752

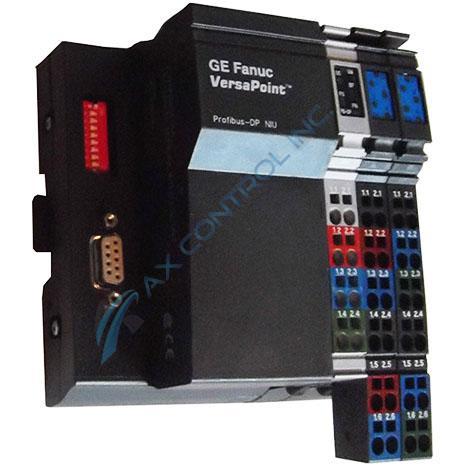

The VersaPoint Discrete Output Module, IC220MDL752, is manufactured by GE Fanuc Automation. This discrete output module contains 4 points at a load current of 0.5A per point. The output voltage is 24 VDC, and there is a 2 and 3 wire connection style. This module offers electronic short circuit protection and overload protection. 44 mA is the maximum current consumption from Local Bus UL, and 2 amperes is the maximum nominal current consumption of US.
Devices such as contactors, indicator lamps, and interposing relays receive control signals from discrete output modules such as IC220MDL752. The required terminal strip associated with this module, IC220TBK082, contains 10 strips and must be ordered separately. There are 5 remote cabinets, and each includes 5 discrete output modules. The remote cabinet also includes 5 PROFIBUS-DP Network Interface Units, 5 discrete input modules, 5 analog input modules, 10 analog output modules, a power terminal strip, 5 power terminals, a terminal strip set, 2 8-position I/O terminal strips, a 12 position I/O terminal strip, and an I/O terminal strip with a shield.
Other components of the control cabinet besides the remote cabinets are the CPU, the 16 slot universal base, 4 terminal blocks, the logic developer, the PROFIBUS-DP Master Module, 4 discrete input modules, 5 discrete output modules, and a 120/240 VAC, 125 VDC power supply. Information on the IC220MDL752 can be found on datasheet number GFK-1904 in the VersaPoint user manual. The module 10 is BD hex (189 decimal). The module dimensions are 12.2 mm x 120 mm x 71.5 mm.
